报表统计图函数

一、报表统计图函数使用说明

1.1 默认加载图表首页 20 条数据 `Fx.BI.loadViewData(String viewId)`

1.1.1 函数用途

通过viewId查询图表数据

1.1.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	图表ID	`“BI_62174baf180c0b000183a7a6”`

1.1.3 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
dispalyFields	Object	表头信息
dataSet	Object	结果数据集

1.1.4 返回值示例

图表数据返回的结构统一为二维表，表头和数据集分开返回，成对映射

{
  "code": 200,
  "message": "success",
  "i18nCode": null,
  "data": {
    "page": {
      "pageSize": 20,
      "pageNumber": 1,
      "pageCount": 1,
      "totalCount": 3
    },
    "displayFields": [
      {
        "fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4",
        "fieldName": "客户名称",
        "formatStr": null,
        "apiName": "name",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_name$0"
      },
      {
        "fieldId": "BI_0e3221e80e82809cb750316a81fb8bec",
        "fieldName": "创建人",
        "formatStr": "",
        "apiName": "created_by",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_created_by$0"
      },
      {
        "fieldId": "BI_bacc9e515603edf1e4d765fe3970a043",
        "fieldName": "客户编号",
        "formatStr": null,
        "apiName": "account_no",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_account_no$0"
      },
      {
        "fieldId": "BI_39346e9a9deba83f255db6867dea0f4e",
        "fieldName": "创建时间",
        "formatStr": "yyyy-MM-dd HH:mm",
        "apiName": "create_time",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_create_time$0"
      },
      {
        "fieldId": "BI_92f9670f6a4ed14d17cebabf8501c4f9",
        "fieldName": "最后修改人",
        "formatStr": "",
        "apiName": "last_modified_by",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_last_modified_by$0"
      },
      {
        "fieldId": "BI_86142383c45f86fa2be8c6884dce6eeb",
        "fieldName": "客户层级",
        "formatStr": "",
        "apiName": "account_path",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_account_path$0"
      },
      {
        "fieldId": "BI_2fa0b164273097ce020c607c71b28dc8",
        "fieldName": "客户行业",
        "formatStr": "",
        "apiName": "field_IGh6L__c",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_field_igh6l__c$0"
      },
      {
        "fieldId": "BI_49ccf044b0b6b9b720da8006f37b8474",
        "fieldName": "到账日期",
        "formatStr": "yyyy-MM-dd",
        "apiName": "field_rewsS__c",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_field_rewss__c$0"
      },
      {
        "fieldId": "BI_4865460605f3905d910d1bffa401a426",
        "fieldName": "value0",
        "formatStr": "",
        "apiName": "value0",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_value0$0"
      }
    ],
    "dataSet": [
      [
        {
          "value": "jjjj",
          "formattedValue": "jjjj",
          "formattedShowValue": "jjjj"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1.64610619939E12",
          "formattedValue": "2022-03-01 11:43",
          "formattedShowValue": "1.64610619939E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1646841600000",
          "formattedValue": "2022-03-10",
          "formattedShowValue": "1646841600000"
        },
        {
          "value": "621d9656a5db41000156aae0",
          "formattedValue": "621d9656a5db41000156aae0",
          "formattedShowValue": "621d9656a5db41000156aae0"
        }
      ],
      [
        {
          "value": "测试客户",
          "formattedValue": "测试客户",
          "formattedShowValue": "测试客户"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1.646135527393E12",
          "formattedValue": "2022-03-01 19:52",
          "formattedShowValue": "1.646135527393E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1646496000000",
          "formattedValue": "2022-03-06",
          "formattedShowValue": "1646496000000"
        },
        {
          "value": "621e08e6a5db4100016247ec",
          "formattedValue": "621e08e6a5db4100016247ec",
          "formattedShowValue": "621e08e6a5db4100016247ec"
        }
      ],
      [
        {
          "value": "费用报销用户1",
          "formattedValue": "费用报销用户1",
          "formattedShowValue": "费用报销用户1"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "1",
          "formattedValue": "1",
          "formattedShowValue": "1"
        },
        {
          "value": "1.645172412386E12",
          "formattedValue": "2022-02-18 16:20",
          "formattedShowValue": "1.645172412386E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",
          "formattedValue": "费用报销客户上级客户/费用报销用户1",
          "formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1645113600000",
          "formattedValue": "2022-02-18",
          "formattedShowValue": "1645113600000"
        },
        {
          "value": "620f56bccb42760001e9d174",
          "formattedValue": "620f56bccb42760001e9d174",
          "formattedShowValue": "620f56bccb42760001e9d174"
        }
      ]
    ]
  }
}

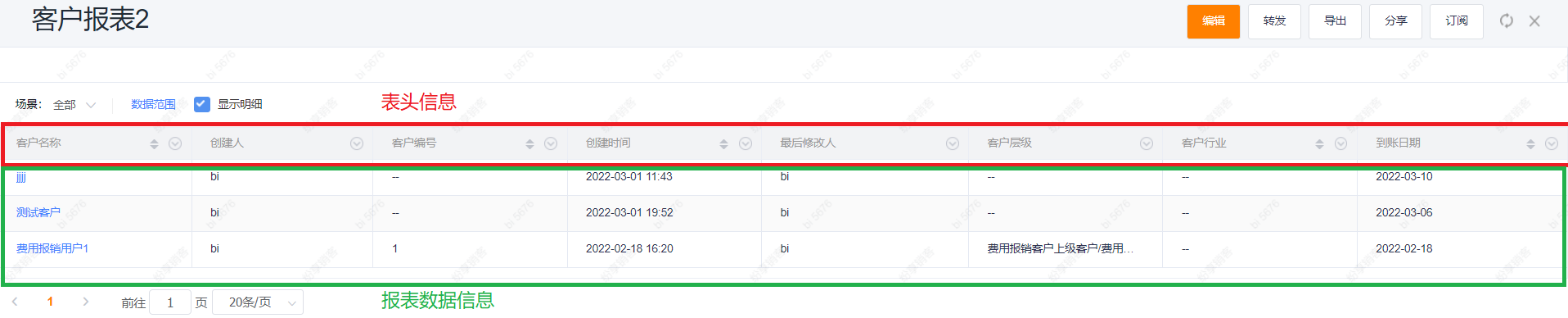

1.1.5 报表表头信息以及报表数据信息展示

报表头各字段说明表

字段	字段含义	返回样例
objectDescribeApiName	pass对象描述	`"objectDescribeApiName": "AccountObj"`
formatStr	格式化信息	`"formatStr": null`
fieldName	字段展示名称	`"fieldName": "客户名称"`
fieldID	字段主键	`"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4"`
columName	唯一列名	`"columnName": "biz_account_name$0"`
apiName	pass字段描述	`"apiName": "name"`
报表数据详细信息字段说明表

字段	字段含义	返回样例
value	字段值	`"value": "jjjj"`
formattedValue	字段展示名称	`"formattedValue": "jjjj"`
formattedShowValue	悬浮值	`"formattedShowValue": "jjjj"`

1.1.6 函数DEMO1

- /加载图表数据*****/
  +++++++++++++++++++++++++++++++++++++++++++++++++Fx.BI.getFiltersResult(String viewId)方法+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

  def(isError4,data4,errorMsg4) = Fx.BI.loadViewData("BI_62174baf180c0b000183a7a6")
  if(!isError4){
  def page = data4["page"]
  log.info("第1页数据集："+data4["dataSet"])

  ====================================================================================================================================================================
  +++++++++++如果要查询所有数据集，要联合 Fx.BI.pageLoadViewData(String viewId,Integer pageNumber,Integer pageSize)方法，结合这两部分的代码+++++++++++++++++++++

  if(page!=null){
  def pageCount = page["pageCount"] as Integer
  def pageSize = page["pageSize"] as Integer
  if(pageCount>1){
  Range range = Ranges.of(2,pageCount.intValue())
  range.each { i ->
  def (isErrorTmp,dataTmp,errorMsgTmp) = Fx.BI.pageLoadViewData("BI_62174baf180c0b000183a7a6",i,pageSize)
  log.info("第"+i+"页数据集:"+dataTmp["dataSet"])
  /拿到DataSet就可以业务自己后续处理了/
  }
  }
  }
  }

1.2 加载第 i 页图表数据 `Fx.BI.pageLoadViewData(String viewId, Integer pageNumber, Integer pageSize)`

1.2.1 函数用途

查询第i页图表数据

注意：此函数可以在已知有多少页的情况下进行查询每页的数据集，通常可以配合方法

Fx.BI.loadViewData(String viewId)

进行查找所有页数据集，详细见代码DEMO1

1.2.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	图表ID	`“BI_62174baf180c0b000183a7a6”`
pageNumber	Integer	是	页码	1
pageSize	Integer	是	单页记录数	20

1.2.3 返回值说明

参数	类型	说明
参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
dispalyFields	Object	表头信息
dataSet	Object	结果数据集

1.2.4 返回值示例

图表数据返回的结构统一为二维表，表头和数据集分开返回，成对映射

{
  "code": 200,
  "message": "success",
  "i18nCode": null,
  "data": {
    "page": {
      "pageSize": 20,
      "pageNumber": 1,
      "pageCount": 1,
      "totalCount": 3
    },
    "displayFields": [
      {
        "fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4",
        "fieldName": "客户名称",
        "formatStr": null,
        "apiName": "name",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_name$0"
      },
      {
        "fieldId": "BI_0e3221e80e82809cb750316a81fb8bec",
        "fieldName": "创建人",
        "formatStr": "",
        "apiName": "created_by",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_created_by$0"
      },
      {
        "fieldId": "BI_bacc9e515603edf1e4d765fe3970a043",
        "fieldName": "客户编号",
        "formatStr": null,
        "apiName": "account_no",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_account_no$0"
      },
      {
        "fieldId": "BI_39346e9a9deba83f255db6867dea0f4e",
        "fieldName": "创建时间",
        "formatStr": "yyyy-MM-dd HH:mm",
        "apiName": "create_time",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_create_time$0"
      },
      {
        "fieldId": "BI_92f9670f6a4ed14d17cebabf8501c4f9",
        "fieldName": "最后修改人",
        "formatStr": "",
        "apiName": "last_modified_by",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_last_modified_by$0"
      },
      {
        "fieldId": "BI_86142383c45f86fa2be8c6884dce6eeb",
        "fieldName": "客户层级",
        "formatStr": "",
        "apiName": "account_path",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_account_path$0"
      },
      {
        "fieldId": "BI_2fa0b164273097ce020c607c71b28dc8",
        "fieldName": "客户行业",
        "formatStr": "",
        "apiName": "field_IGh6L__c",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_field_igh6l__c$0"
      },
      {
        "fieldId": "BI_49ccf044b0b6b9b720da8006f37b8474",
        "fieldName": "到账日期",
        "formatStr": "yyyy-MM-dd",
        "apiName": "field_rewsS__c",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_field_rewss__c$0"
      },
      {
        "fieldId": "BI_4865460605f3905d910d1bffa401a426",
        "fieldName": "value0",
        "formatStr": "",
        "apiName": "value0",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_value0$0"
      }
    ],
    "dataSet": [
      [
        {
          "value": "jjjj",
          "formattedValue": "jjjj",
          "formattedShowValue": "jjjj"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1.64610619939E12",
          "formattedValue": "2022-03-01 11:43",
          "formattedShowValue": "1.64610619939E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1646841600000",
          "formattedValue": "2022-03-10",
          "formattedShowValue": "1646841600000"
        },
        {
          "value": "621d9656a5db41000156aae0",
          "formattedValue": "621d9656a5db41000156aae0",
          "formattedShowValue": "621d9656a5db41000156aae0"
        }
      ],
      [
        {
          "value": "测试客户",
          "formattedValue": "测试客户",
          "formattedShowValue": "测试客户"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1.646135527393E12",
          "formattedValue": "2022-03-01 19:52",
          "formattedShowValue": "1.646135527393E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1646496000000",
          "formattedValue": "2022-03-06",
          "formattedShowValue": "1646496000000"
        },
        {
          "value": "621e08e6a5db4100016247ec",
          "formattedValue": "621e08e6a5db4100016247ec",
          "formattedShowValue": "621e08e6a5db4100016247ec"
        }
      ],
      [
        {
          "value": "费用报销用户1",
          "formattedValue": "费用报销用户1",
          "formattedShowValue": "费用报销用户1"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "1",
          "formattedValue": "1",
          "formattedShowValue": "1"
        },
        {
          "value": "1.645172412386E12",
          "formattedValue": "2022-02-18 16:20",
          "formattedShowValue": "1.645172412386E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",
          "formattedValue": "费用报销客户上级客户/费用报销用户1",
          "formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1645113600000",
          "formattedValue": "2022-02-18",
          "formattedShowValue": "1645113600000"
        },
        {
          "value": "620f56bccb42760001e9d174",
          "formattedValue": "620f56bccb42760001e9d174",
          "formattedShowValue": "620f56bccb42760001e9d174"
        }
      ]
    ]
  }
}

1.2.5 报表表头信息以及报表数据信息展示

报表头各字段说明表

字段	字段含义	返回样例
fieldID	字段主键	`"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4"`
fieldName	字段展示名称	`"fieldName": "客户名称"`
formatStr	格式化信息	`"formatStr": null`
apiName	pass字段描述	`"apiName": "name"`
objectDescribeApiName	pass对象描述	`"objectDescribeApiName": "AccountObj"`
columName	唯一列名	`"columnName": "biz_account_name$0"`
报表数据详细信息字段说明表

字段	字段含义	返回样例
value	字段值	`"value": "jjjj"`
formattedValue	字段展示名称	`"formattedValue": "jjjj"`
formattedShowValue	悬浮值	`"formattedShowValue": "jjjj"`

1.2.6 函数DEMO2

/**查询第i页数据集**/
+++++++++++++++++++++Fx.BI.pageLoadViewData(String viewId,Integer pageNumber,Integer pageSize)方法++++++++++++++++++++++++++++++
======================================================================================================================================
    def (isErrorTmp,dataTmp,errorMsgTmp) = Fx.BI.pageLoadViewData("BI_62174baf180c0b000183a7a6",i,pageSize)
    log.info("第"+i+"页数据集:"+dataTmp["dataSet"])
    /*拿到DataSet就可以业务自己后续处理了*/

1.3 条件查询图表数据（默认返回首页 20 条） `Fx.BI.queryViewData(String viewId, String defaultFilterOptionID, List filters)`

1.3.1 函数用途

注意：此函数只能查询一页的数据，如果要查询所有数据，需要联合这个函数

Fx.BI.pageQueryViewData(String viewId,Integer pageNum,Integer pageSize,String defaultFilterOptionID,List filters)

，看下方示例代码

1.3.2 参数说明

参数	类型	是否必须	说明	参数示例
参数	类型	是否必须	说明	参数示例
viewId	String	是	图表ID	`“BI_62174baf180c0b000183a7a6”`
defaultFilterOptionID	String	是	场景ID	`“BI_59a3e59333b39e09b44e9db1”`
filters	List	否	筛选条件（包括数据范围和场景筛选）	`["filterId":"BI_62174baf180c0b000183a7aa","dataRangeId":"6"]`

1.3.3 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
dispalyFields	Object	表头信息
dataSet	Object	结果数据集

1.3.4 返回值示例

图表数据返回的结构统一为二维表，表头和数据集分开返回，成对映射

{
"code": 200,
"message": "success",
"i18nCode": null,
"data": {
"page": {
"pageSize": 20,
"pageNumber": 20,
"pageCount": 1,
"totalCount": 2
},
"displayFields": [
{
"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4",
"fieldName": "客户名称",
"apiName": "name",
"objectDescribeApiName": "AccountObj",
"columnName": "biz_account_name$0"
},
{
"fieldId": "BI_bacc9e515603edf1e4d765fe3970a043",
"fieldName": "客户编号",
"apiName": "account_no",
"objectDescribeApiName": "AccountObj",
"columnName": "biz_account_account_no$0"
}
],
"dataSet": [
[
{
"value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",
"formattedValue": "费用报销客户上级客户/费用报销用户1",
"formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"
},
{
"value": "1645113600000",
"formattedValue": "2022-02-18",
"formattedShowValue": "1645113600000"
}
]
]
}
}

报表头各字段说明表

字段	字段含义	返回样例
fieldID	字段主键	`"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4"`
fieldName	字段展示名称	`"fieldName": "客户名称"`
apiName	pass字段描述	`"apiName": "name"`
objectDescribeApiName	pass对象描述	`"objectDescribeApiName": "AccountObj"`
columName	唯一列名	`"columnName": "biz_account_name$0"`
报表数据详细信息字段说明表

字段	字段含义	返回样例
value	字段值	`"value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",`
formattedValue	字段展示名称	`"formattedValue": "费用报销客户上级客户/费用报销用户1",`
formattedShowValue	悬浮值	`"formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"`

1.3.5 函数DEMO3

/**条件查询*/
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++Fx.BI.queryViewData(String viewId,String optionId,List filters)方法，按条件查询表中数据（只能查询一页数据）++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
==========================================================================================================================================================================================================================================

List filters = [["filterId":"BI_62174baf180c0b000183a7aa","dateRangeId":"6"]]
def(isError6,data6,errorMsg6) = Fx.BI.queryViewData("BI_62174baf180c0b000183a7a6","BI_59a3e59333b39e09b44e9db1",filters)
if(!isError6){
  def page6 = data6["page"]
  log.info("第1页数据集："+data6["dataSet"])

===========================================================================================================================================================================================================================================
++++++++++++++++++++++++++++++如果要查询所有数据联合下方的Fx.BI.pageQueryViewData(String viewId,Integer pageNumber,Integer pageSize,String defaultFilterOptionID,List filters)方法+++++++++++++++++++++++++++++++++++++++++++++++
===========================================================================================================================================================================================================================================
  if(page6!=null){
  def pageCount6 = page6["pageCount"] as Integer
  def pageSize6 = page6["pageSize"] as Integer
  if(pageCount6>1){
    Range range6 = Ranges.of(2,pageCount6.intValue())
  range6.each { i ->
    def (isErrorTmp,dataTmp,errorMsgTmp) = Fx.BI.pageQueryViewData("BI_62174baf180c0b000183a7a6",i,pageSize6,"BI_59a3e59333b39e09b44e9db1",filters)
    log.info("第"+i+"页数据集:"+dataTmp["dataSet"])
    /*拿到DataSet就可以业务自己后续处理了*/
  }
  }
  }
}else{
  log.info("条件查询失败:"+errorMsg6)
}

1.4 条件查询第 i 页数据集 `Fx.BI.pageQueryViewData(String viewId, Integer pageNumber, Integer pageSize, String defaultFilterOptionID, List filters)`

1.4.1 函数用途

按指定条件和指定页数查询图表数据

注意：此函数可以在已知有多少页的情况下进行查询每页的数据集，通常可以配合方法

Fx.BI.queryViewData(String viewId,String defaultFilterOptionID,List filters)

进行查找所有页数据集，详细见代码DEMO3

1.4.2 参数说明

参数	类型	是否必须	说明
viewId	String	是	图表ID
pageNumber	Integer	是	页码
pageSize	Integer	是	单页记录数
defaultFilterOptionID	String	是	权限场景
filters	List	是	筛选条件

1.4.3 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
dispalyFields	Object	表头信息
dataSet	Object	结果数据集

1.4.4 返回值示例

图表数据返回的结构统一为二维表，表头和数据集分开返回，成对映射

{
"code": 200,
"message": "success",
"i18nCode": null,
"data": {
"page": {
"pageSize": 20,
"pageNumber": 20,
"pageCount": 1,
"totalCount": 2
},
"displayFields": [
{
"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4",
"fieldName": "客户名称",
"apiName": "name",
"objectDescribeApiName": "AccountObj",
"columnName": "biz_account_name$0"
},
{
"fieldId": "BI_bacc9e515603edf1e4d765fe3970a043",
"fieldName": "客户编号",
"apiName": "account_no",
"objectDescribeApiName": "AccountObj",
"columnName": "biz_account_account_no$0"
}
],
"dataSet": [
[
{
"value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",
"formattedValue": "费用报销客户上级客户/费用报销用户1",
"formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"
},
{
"value": "1645113600000",
"formattedValue": "2022-02-18",
"formattedShowValue": "1645113600000"
}
]
]
}
}

报表头各字段说明表

字段	字段含义	返回样例
字段	字段含义	返回样例
fieldID	字段主键	`"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4"`
fieldName	字段展示名称	`"fieldName": "客户名称"`
apiName	pass字段描述	`"apiName": "name"`
objectDescribeApiName	pass对象描述	`"objectDescribeApiName": "AccountObj"`
columName	唯一列名	`"columnName": "biz_account_name$0"`
报表数据详细信息字段说明表

字段	字段含义	返回样例
value	字段值	`"value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",`
formattedValue	字段展示名称	`"formattedValue": "费用报销客户上级客户/费用报销用户1",`
formattedShowValue	悬浮值	`"formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"`

1.4.5 函数DEMO4

===========================================================================================================================================================================================================================================
+++++++++++++++++++++++++++++++++++++++++++++++++Fx.BI.pageQueryViewData(String viewId,Integer pageNumber,Integer pageSize,String defaultFilterOptionID,List filters)方法++++++++++++++++++++++++++++++++++++++++++++++++++++++++
===========================================================================================================================================================================================================================================
 /**条件查询第i页的图表数据集*/
def (isErrorTmp,dataTmp,errorMsgTmp) = Fx.BI.pageQueryViewData("BI_62174baf180c0b000183a7a6",i,pageSize6,"BI_59a3e59333b39e09b44e9db1",filters)
    log.info("第"+i+"页数据集:"+dataTmp["dataSet"])
    /*拿到DataSet就可以业务自己后续处理了*/

1.5 获取图表的数据范围以及场景 `Fx.BI.getFiltersResult(String viewId)`

1.5.1 函数用途

按指定条件查询图表的数据范围以及场景

1.5.2 参数说明

参数	类型	是否必须	说明
viewId	String	是	图表ID

1.5.3 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限404：未找到500：系统异常
message	String	返回消息
filterGroups	Object	数据范围信息
labelAndOptions	Object	场景信息

1.5.4 返回值示例

图表数据返回的结构统一为二维表，表头和数据集分开返回，成对映射

{
  "code": 200,
  "message": "success",
  "i18nCode": null,
  "data": {
    "filterGroups": [
      {
        "filters": [
          {
            "filterId": "BI_62174baf180c0b000183a7a9",
            "value1": "[{"id":999999,"type":"c"}]",
            "value2": "",
            "dateRangeId": null
          },
          {
            "filterId": "BI_62174baf180c0b000183a7aa",
            "value1": "2022-01-01",
            "value2": "2022-12-31",
            "dateRangeId": null
          },
          {
            "filterId": "BI_62174baf180c0b000183a7ab",
            "value1": "2022-01-01 00:00",
            "value2": "2022-12-31 23:59",
            "dateRangeId": null
          },
          {
            "filterId": "BI_62174baf180c0b000183a7ac",
            "value1": "[{"id":999999,"type":"c"}]",
            "value2": "",
            "dateRangeId": null
          }
        ]
      }
    ],
    "labelAndOptions": [
      {
        "defaultFilterOptionID": null,
        "defaultFilterOptionType": "UDF",
        "label": "场景",
        "defaultFilterOptions": [
          {
            "optionName": "全部",
            "isDefault": 1,
            "optionID": "BI_59a3e59333b39e09b44e9db1"
          },
          {
            "optionName": "我负责的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db2"
          },
          {
            "optionName": "我联合跟进的",
            "isDefault": 0,
            "optionID": "BI_171714538838884352"
          },
          {
            "optionName": "我服务的",
            "isDefault": 0,
            "optionID": "BI_171714538872438784"
          },
          {
            "optionName": "我参与的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db3"
          },
          {
            "optionName": "我负责部门的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db4"
          },
          {
            "optionName": "我下属负责的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db5"
          },
          {
            "optionName": "我下属联合跟进的",
            "isDefault": 0,
            "optionID": "BI_171714538939547648"
          },
          {
            "optionName": "我下属服务的",
            "isDefault": 0,
            "optionID": "BI_171714538973102080"
          },
          {
            "optionName": "我下属参与的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db6"
          },
          {
            "optionName": "共享给我的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db7"
          }
        ]
      }
    ]
  }
}

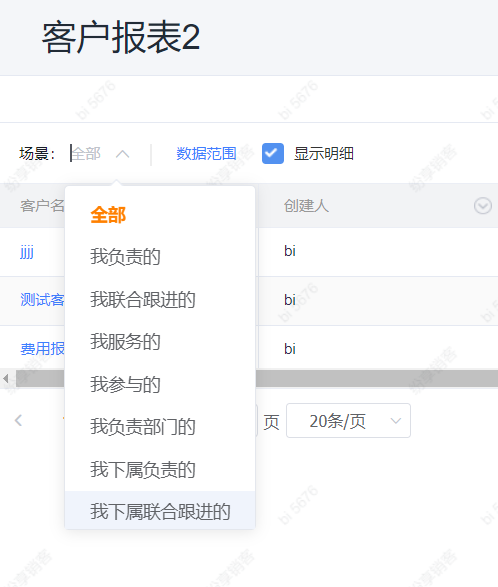

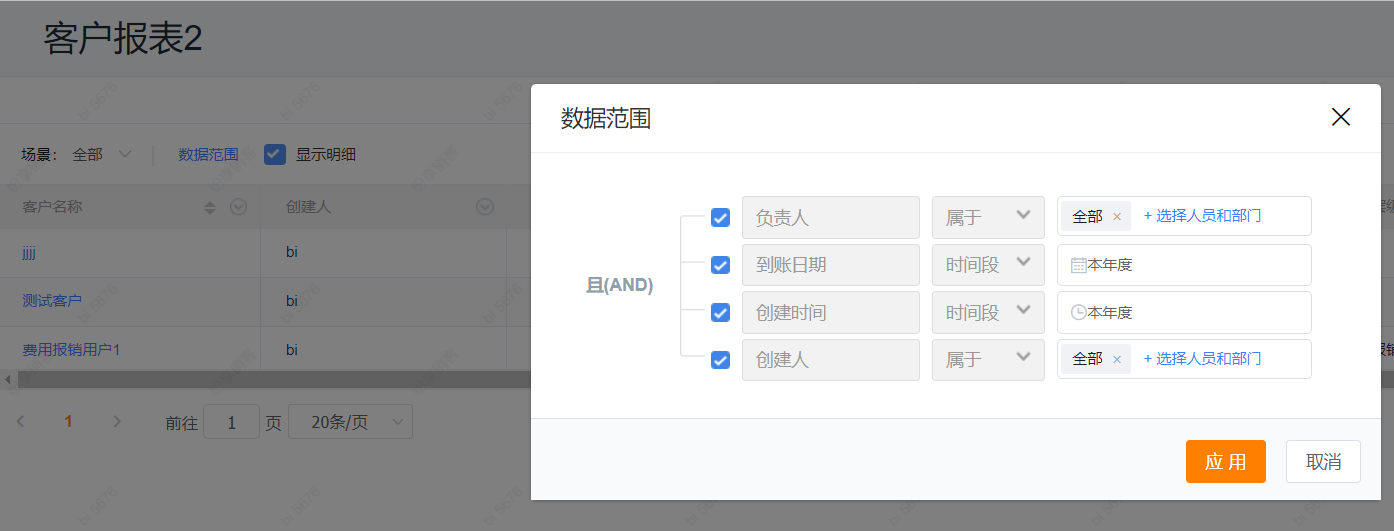

1.5.5 返回值代码与示例图对照展示

字段	字段含义	返回样例
dataRangeId	日期筛选需要	`"dateRangeId": null`
filterId	筛选器主键	`"filterId": "BI_62174baf180c0b000183a7a9",`
value1	默认筛选范围	`"value1": "[{"id":999999,"type":"c"}]","value1": "[{"id":999999,"type":"c"}]",`
value2	默认筛选范围	`"value2": "",`
场景信息（labelAndOptions）

字段	字段含义	返回样例
optionName	场景选项名称	`"optionName": "全部"`
isDefault	是否默认（1：默认）	`"isDefault": 1`
optionID	场景选项ID	`"optionID": "BI_59a3e59333b39e09b44e9db1"`

1.5.6 函数DEMO5

/*加载图表筛选器*/
++++++++++++++++++++++++++++++++++++++++++++++ Fx.BI.getFiltersResult(String viewId)方法++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
=====================================================================================================================================================
def(isError5,data5,errorMsg5) = Fx.BI.getFiltersResult("BI_62174baf180c0b000183a7a6")
if(!isError5){
  log.info("筛选器信息:"+data5["filterGroups"])
  log.info("场景信息:"+data5["labelAndOptions"])
  /*可根据FilterId修改筛选器值进行查询，值的结构可参考报表运行态传参结构*/
}

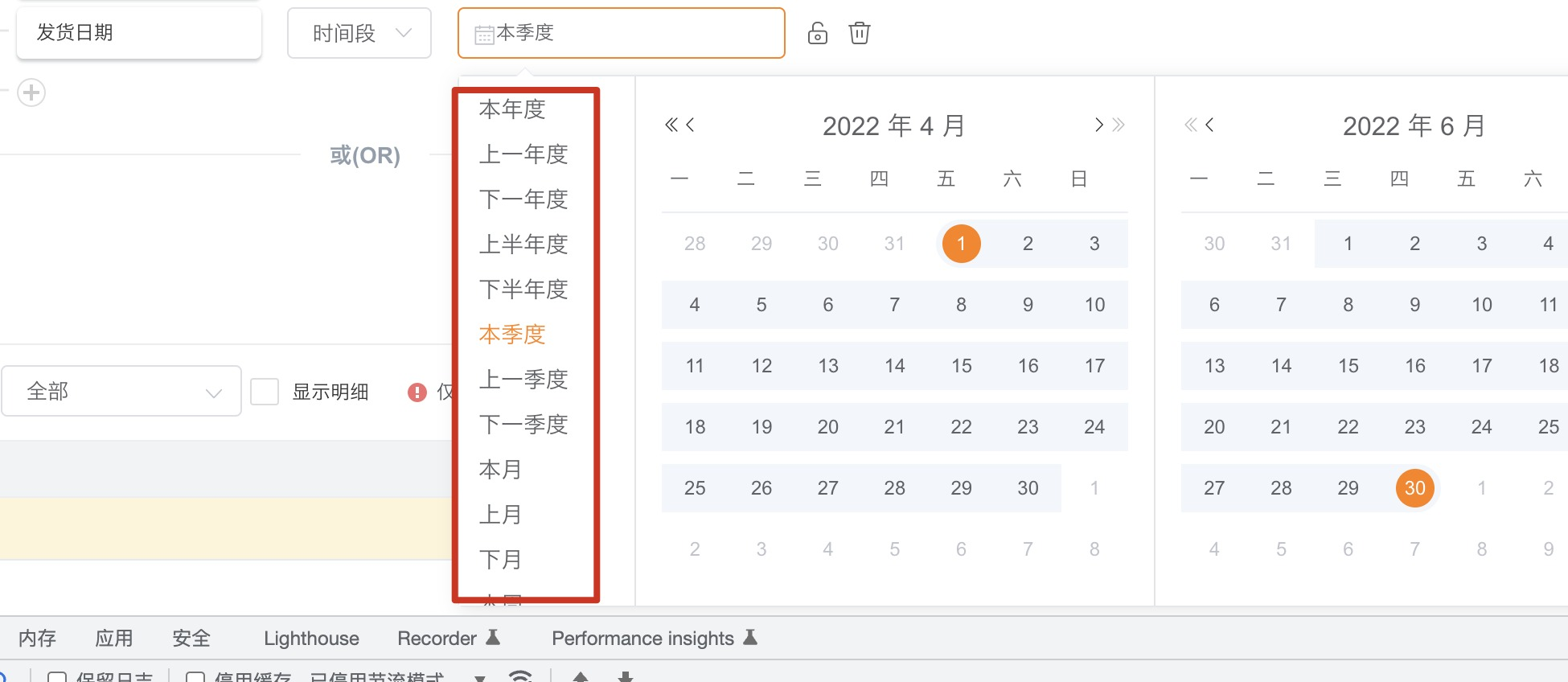

1.6 使用filterList注意事项：日期筛选case和枚举项

注意：如果筛选范围为日期筛选的话，需要在filterList添加一个条件，如果日期筛选不加这个条件是会失败的

例如：

”dataRangeId“：6

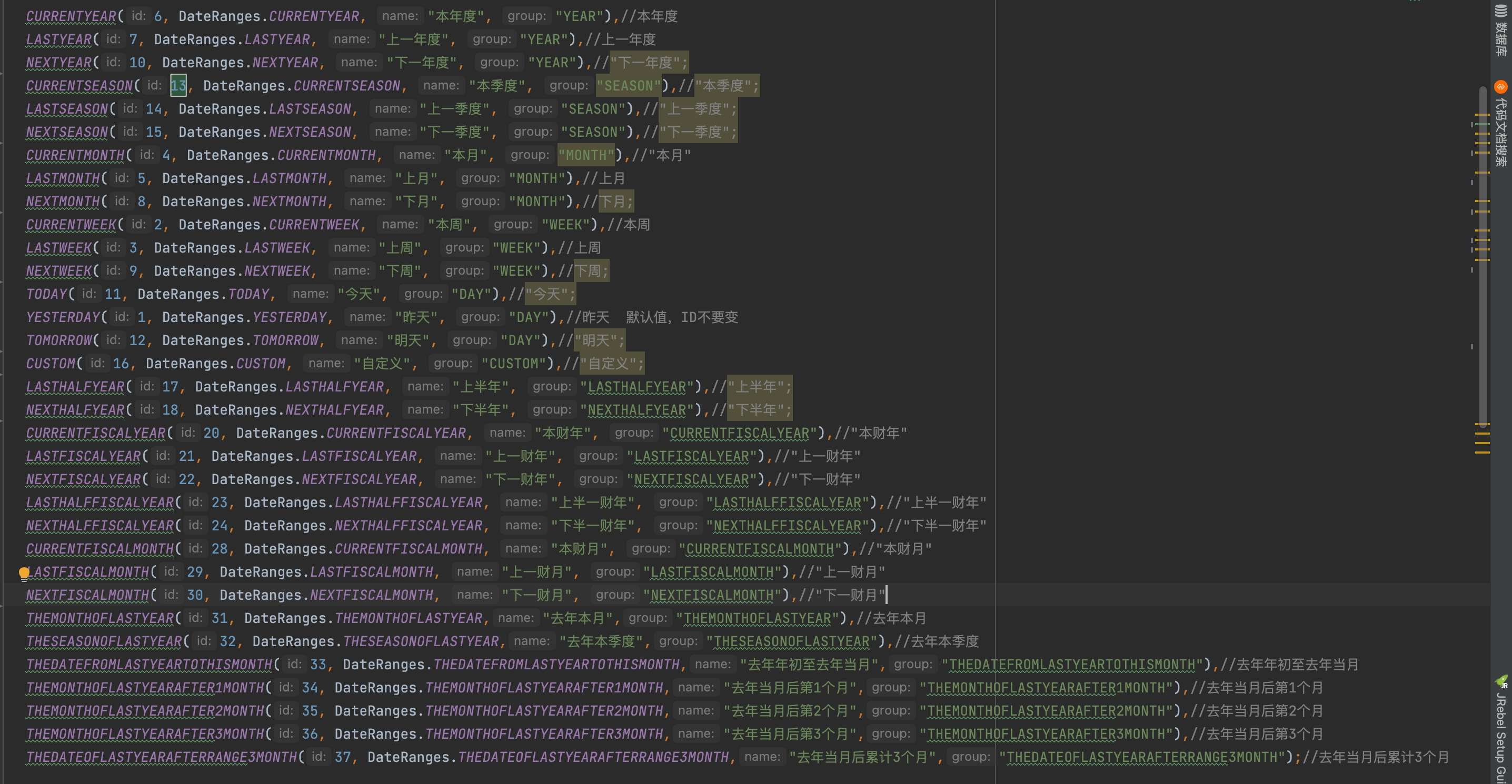

，代表本年度，需要的枚举值和介绍见下图

2026-09-18

报表统计图函数

一、报表统计图函数使用说明

1.1 默认加载图表首页 20 条数据 `Fx.BI.loadViewData(String viewId)`

1.1.1 函数用途

1.1.2 参数说明

1.1.3 返回值说明

1.1.4 返回值示例

1.1.5 报表表头信息以及报表数据信息展示

1.1.6 函数DEMO1

/加载图表数据*****/
+++++++++++++++++++++++++++++++++++++++++++++++++Fx.BI.getFiltersResult(String viewId)方法+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

1.2 加载第 i 页图表数据 `Fx.BI.pageLoadViewData(String viewId, Integer pageNumber, Integer pageSize)`

1.2.1 函数用途

1.2.2 参数说明

1.2.3 返回值说明

1.2.4 返回值示例

1.2.5 报表表头信息以及报表数据信息展示

1.2.6 函数DEMO2

1.3 条件查询图表数据（默认返回首页 20 条） `Fx.BI.queryViewData(String viewId, String defaultFilterOptionID, List filters)`

1.3.1 函数用途

1.3.2 参数说明

1.3.3 返回值说明

1.3.4 返回值示例

1.3.5 函数DEMO3

1.4 条件查询第 i 页数据集 `Fx.BI.pageQueryViewData(String viewId, Integer pageNumber, Integer pageSize, String defaultFilterOptionID, List filters)`

1.4.1 函数用途

1.4.2 参数说明

1.4.3 返回值说明

1.4.4 返回值示例

1.4.5 函数DEMO4

1.5 获取图表的数据范围以及场景 `Fx.BI.getFiltersResult(String viewId)`

1.5.1 函数用途

1.5.2 参数说明

1.5.3 返回值说明

1.5.4 返回值示例

1.5.5 返回值代码与示例图对照展示

1.5.6 函数DEMO5

1.6 使用filterList注意事项：日期筛选case和枚举项

本页目录

报表统计图函数

一、报表统计图函数使用说明

1.1 默认加载图表首页 20 条数据 Fx.BI.loadViewData(String viewId)

1.1.1 函数用途

1.1.2 参数说明

1.1.3 返回值说明

1.1.4 返回值示例

1.1.5 报表表头信息以及报表数据信息展示

1.1.6 函数DEMO1

/加载图表数据*****/ +++++++++++++++++++++++++++++++++++++++++++++++++Fx.BI.getFiltersResult(String viewId)方法+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

1.2 加载第 i 页图表数据 Fx.BI.pageLoadViewData(String viewId, Integer pageNumber, Integer pageSize)

1.2.1 函数用途

1.2.2 参数说明

1.2.3 返回值说明

1.2.4 返回值示例

1.2.5 报表表头信息以及报表数据信息展示

1.2.6 函数DEMO2

1.3 条件查询图表数据（默认返回首页 20 条） Fx.BI.queryViewData(String viewId, String defaultFilterOptionID, List filters)

1.3.1 函数用途

1.3.2 参数说明

1.3.3 返回值说明

1.3.4 返回值示例

1.3.5 函数DEMO3

1.4 条件查询第 i 页数据集 Fx.BI.pageQueryViewData(String viewId, Integer pageNumber, Integer pageSize, String defaultFilterOptionID, List filters)

1.4.1 函数用途

1.4.2 参数说明

1.4.3 返回值说明

1.4.4 返回值示例

1.4.5 函数DEMO4

1.5 获取图表的数据范围以及场景 Fx.BI.getFiltersResult(String viewId)

1.5.1 函数用途

1.5.2 参数说明

1.5.3 返回值说明

1.5.4 返回值示例

1.5.5 返回值代码与示例图对照展示

1.5.6 函数DEMO5

1.6 使用filterList注意事项：日期筛选case和枚举项

本页目录

1.1 默认加载图表首页 20 条数据 `Fx.BI.loadViewData(String viewId)`

/加载图表数据*****/
+++++++++++++++++++++++++++++++++++++++++++++++++Fx.BI.getFiltersResult(String viewId)方法+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

1.2 加载第 i 页图表数据 `Fx.BI.pageLoadViewData(String viewId, Integer pageNumber, Integer pageSize)`

1.3 条件查询图表数据（默认返回首页 20 条） `Fx.BI.queryViewData(String viewId, String defaultFilterOptionID, List filters)`

1.4 条件查询第 i 页数据集 `Fx.BI.pageQueryViewData(String viewId, Integer pageNumber, Integer pageSize, String defaultFilterOptionID, List filters)`

1.5 获取图表的数据范围以及场景 `Fx.BI.getFiltersResult(String viewId)`
