BI查询接入函数使用说明

在使用BI分析时，如果想要对结果数据做进一步的分析，可以通过接函数获取结果数据。目前主要支持了报表、单维度统计图、报表交叉表、拼表获取结果数据。具体的使用场景和使用方法见如下说明：

默认加载图表首页20条数据 Fx.BI.loadViewData(<string></string>)
加载第i页图表数据 Fx.BI.pageLoadViewData(<String viewId>,<Integer pageNumber>,<Integer pageSize>)
条件查询图表数据（默认返回首页20条） Fx.BI.queryViewData(<String viewId>,<String defaultFilterOptionID>,<List filters>)
条件查询第i页数据集 Fx.BI.pageQueryViewData(<String viewId>,<Integer pageNumber>,<Integer pageSize>,<String defaultFilterOptionID>,<List filters>)

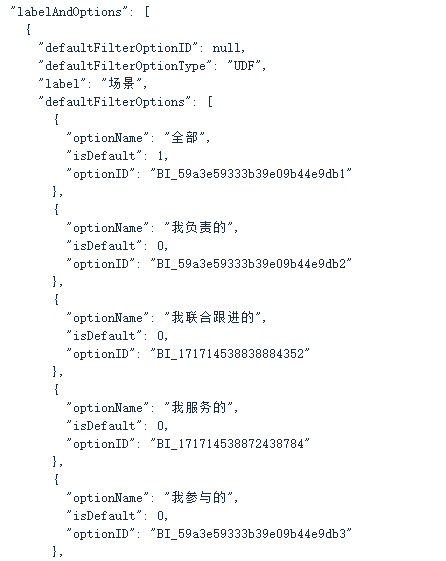

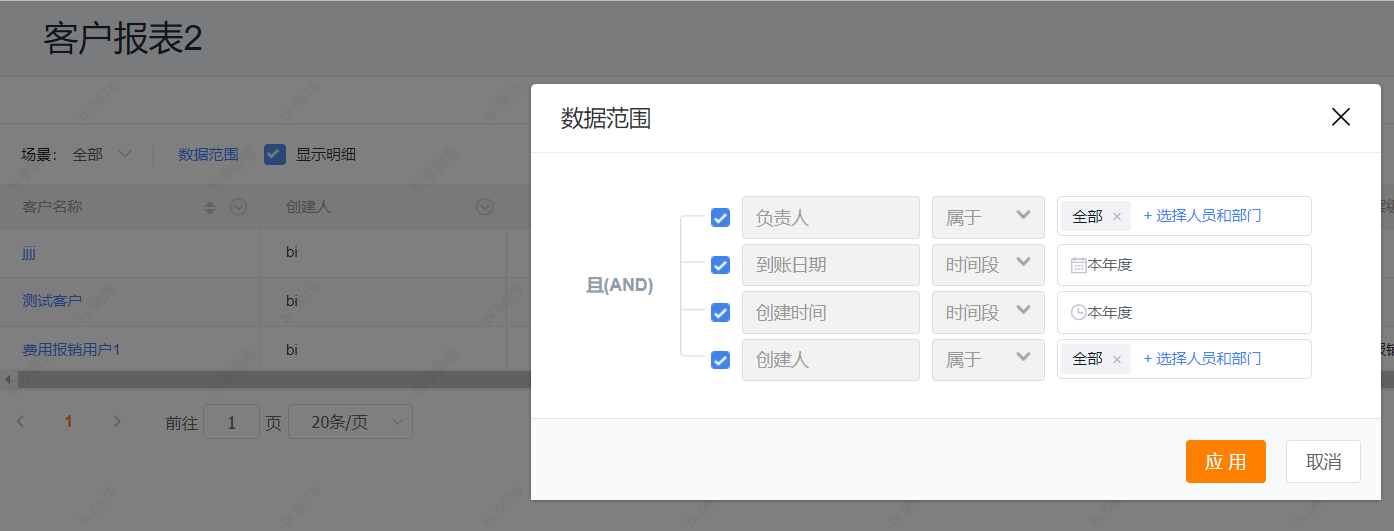

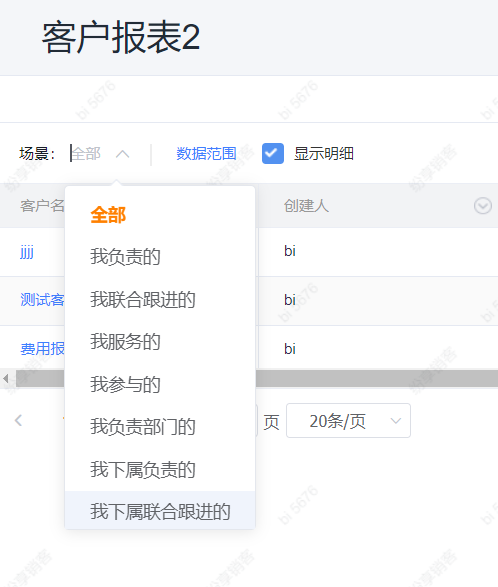

获取图表的数据范围以及场景 Fx.BI.getFiltersResult(<String viewId>)

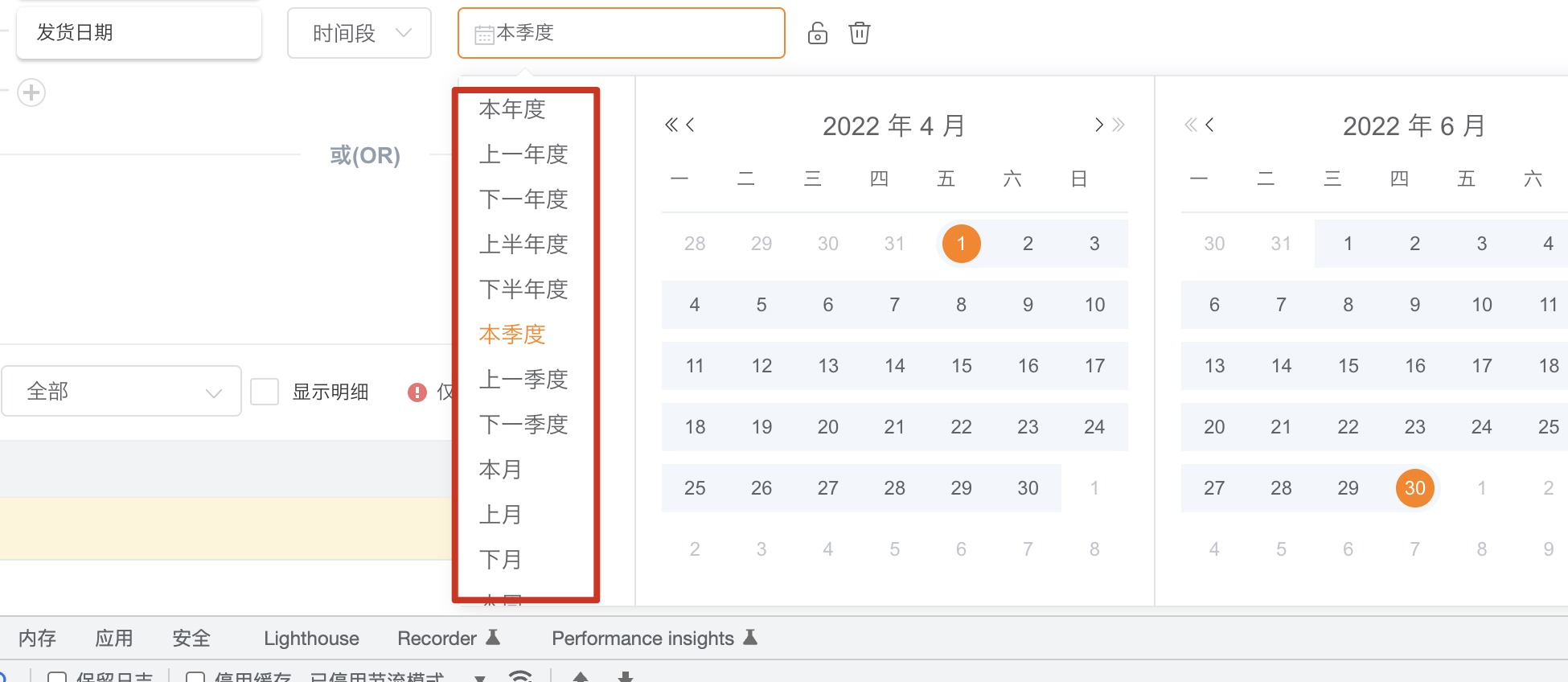

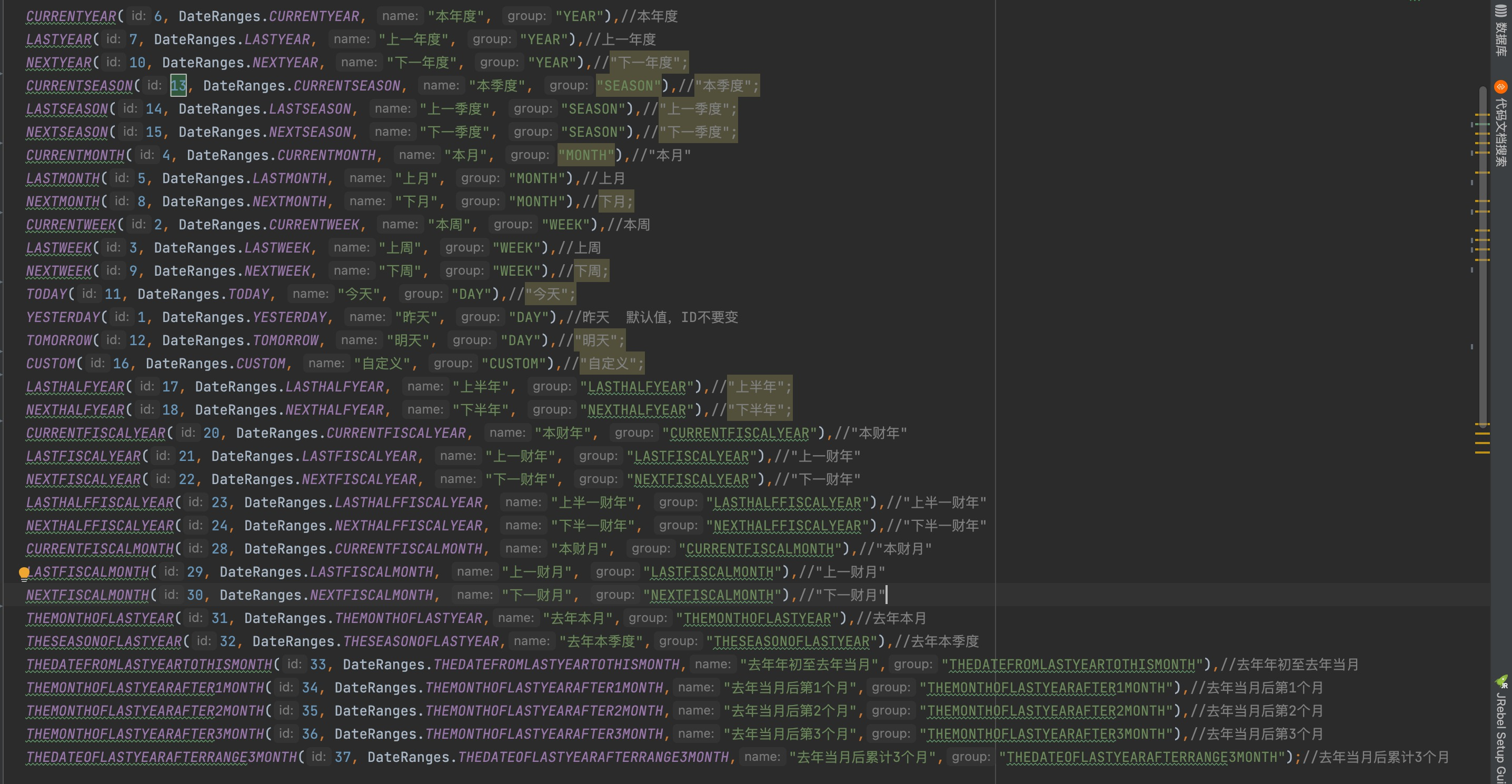

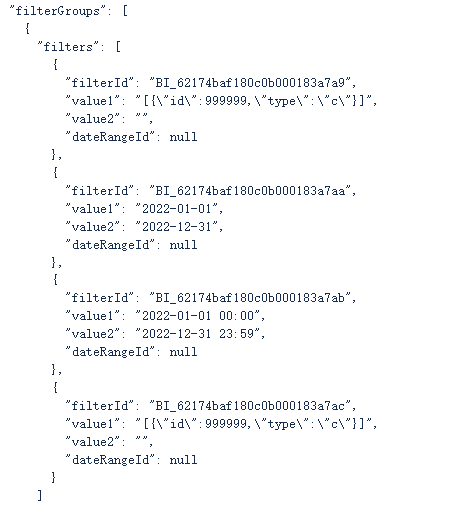

使用filterList注意事项：日期筛选case和枚举项

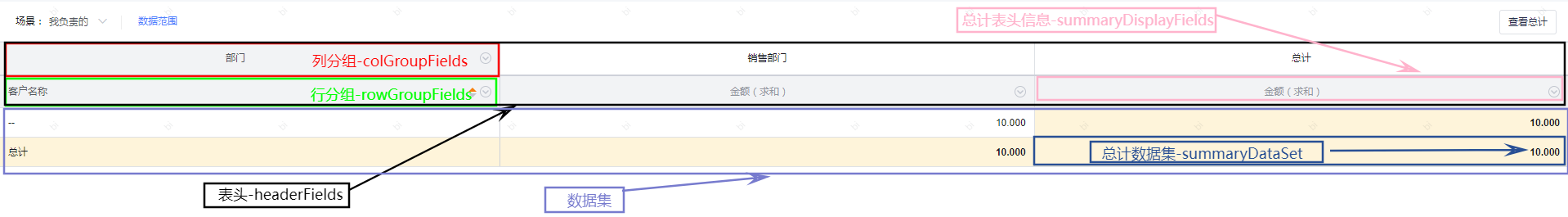

通过交叉表Id查询交叉表（默认加载交叉表首页20条数据） Fx.BI.queryPivotViewDataById(<String viewId>)
通过viewId和分页信息page查询交叉表 Fx.BI.queryPivotViewDataByPage(<String viewId>,<Integer pageNumber>,<Integer pageSize>)
通过viewId，filterList和defaultFilterOptionId查询交叉表数据 Fx.BI.queryPivotViewDataByFilter(<String viewId>,<String defaultFilterOptionId >,<List filterList>)
通过viewId，分页信息page，filterList和defaultFilterOptionId、查询交叉表数据 Fx.BI.queryPivotReportData(<String viewId>,<Integer pageNumber>,<Integer pageSize>,<String defaultFilterOptionId >,<List filterList>)

通过图表Id查询拼表（默认加载拼表首页20条数据） Fx.BI.queryLwtViewDataById(<String viewId>)
通过viewId和分页信息page查询拼表 Fx.BI.queryLwtViewDataByPage(<String viewId>,<Integer pageNumber>,<Integer pageSize>)
通过viewId，filterList查询拼表数据 Fx.BI.queryLwtViewDataByFilter(<String viewId>,<List filterList>)
通过viewId，分页信息page，filterList查询拼表数据 Fx.BI.queryLwtViewData(<String viewId>,<Integer pageNumber>,<Integer pageSize>，<List filterList>)

一、报表统计图函数使用说明

1.1 默认加载图表首页20条数据 Fx.BI.loadViewData(<String viewId>)

1.1.1 函数用途

通过viewId查询图表数据

1.1.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	图表ID	“BI_62174baf180c0b000183a7a6”

1.1.3 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
dispalyFields	Object	表头信息
dataSet	Object	结果数据集

1.1.4 返回值示例

图表数据返回的结构统一为二维表，表头和数据集分开返回，成对映射

{
  "code": 200,
  "message": "success",
  "i18nCode": null,
  "data": {
    "page": {
      "pageSize": 20,
      "pageNumber": 1,
      "pageCount": 1,
      "totalCount": 3
    },
    "displayFields": [
      {
        "fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4",
        "fieldName": "客户名称",
        "formatStr": null,
        "apiName": "name",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_name$0"
      },
      {
        "fieldId": "BI_0e3221e80e82809cb750316a81fb8bec",
        "fieldName": "创建人",
        "formatStr": "",
        "apiName": "created_by",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_created_by$0"
      },
      {
        "fieldId": "BI_bacc9e515603edf1e4d765fe3970a043",
        "fieldName": "客户编号",
        "formatStr": null,
        "apiName": "account_no",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_account_no$0"
      },
      {
        "fieldId": "BI_39346e9a9deba83f255db6867dea0f4e",
        "fieldName": "创建时间",
        "formatStr": "yyyy-MM-dd HH:mm",
        "apiName": "create_time",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_create_time$0"
      },
      {
        "fieldId": "BI_92f9670f6a4ed14d17cebabf8501c4f9",
        "fieldName": "最后修改人",
        "formatStr": "",
        "apiName": "last_modified_by",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_last_modified_by$0"
      },
      {
        "fieldId": "BI_86142383c45f86fa2be8c6884dce6eeb",
        "fieldName": "客户层级",
        "formatStr": "",
        "apiName": "account_path",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_account_path$0"
      },
      {
        "fieldId": "BI_2fa0b164273097ce020c607c71b28dc8",
        "fieldName": "客户行业",
        "formatStr": "",
        "apiName": "field_IGh6L__c",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_field_igh6l__c$0"
      },
      {
        "fieldId": "BI_49ccf044b0b6b9b720da8006f37b8474",
        "fieldName": "到账日期",
        "formatStr": "yyyy-MM-dd",
        "apiName": "field_rewsS__c",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_field_rewss__c$0"
      },
      {
        "fieldId": "BI_4865460605f3905d910d1bffa401a426",
        "fieldName": "value0",
        "formatStr": "",
        "apiName": "value0",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_value0$0"
      }
    ],
    "dataSet": [
      [
        {
          "value": "jjjj",
          "formattedValue": "jjjj",
          "formattedShowValue": "jjjj"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1.64610619939E12",
          "formattedValue": "2022-03-01 11:43",
          "formattedShowValue": "1.64610619939E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1646841600000",
          "formattedValue": "2022-03-10",
          "formattedShowValue": "1646841600000"
        },
        {
          "value": "621d9656a5db41000156aae0",
          "formattedValue": "621d9656a5db41000156aae0",
          "formattedShowValue": "621d9656a5db41000156aae0"
        }
      ],
      [
        {
          "value": "测试客户",
          "formattedValue": "测试客户",
          "formattedShowValue": "测试客户"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1.646135527393E12",
          "formattedValue": "2022-03-01 19:52",
          "formattedShowValue": "1.646135527393E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1646496000000",
          "formattedValue": "2022-03-06",
          "formattedShowValue": "1646496000000"
        },
        {
          "value": "621e08e6a5db4100016247ec",
          "formattedValue": "621e08e6a5db4100016247ec",
          "formattedShowValue": "621e08e6a5db4100016247ec"
        }
      ],
      [
        {
          "value": "费用报销用户1",
          "formattedValue": "费用报销用户1",
          "formattedShowValue": "费用报销用户1"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "1",
          "formattedValue": "1",
          "formattedShowValue": "1"
        },
        {
          "value": "1.645172412386E12",
          "formattedValue": "2022-02-18 16:20",
          "formattedShowValue": "1.645172412386E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",
          "formattedValue": "费用报销客户上级客户/费用报销用户1",
          "formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1645113600000",
          "formattedValue": "2022-02-18",
          "formattedShowValue": "1645113600000"
        },
        {
          "value": "620f56bccb42760001e9d174",
          "formattedValue": "620f56bccb42760001e9d174",
          "formattedShowValue": "620f56bccb42760001e9d174"
        }
      ]
    ]
  }
}

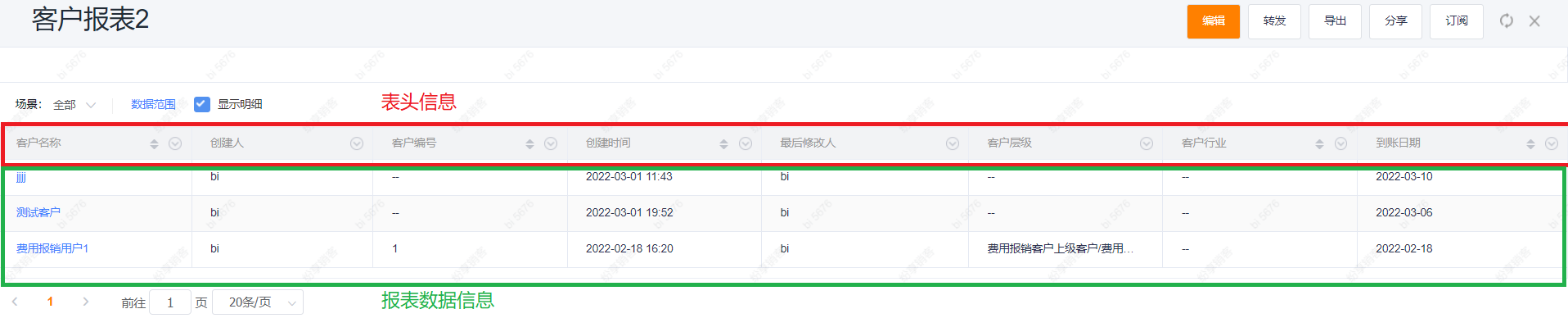

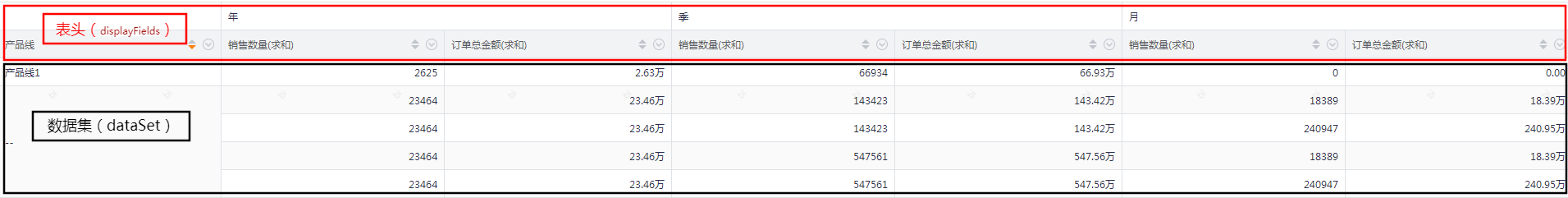

1.1.5 报表表头信息以及报表数据信息展示

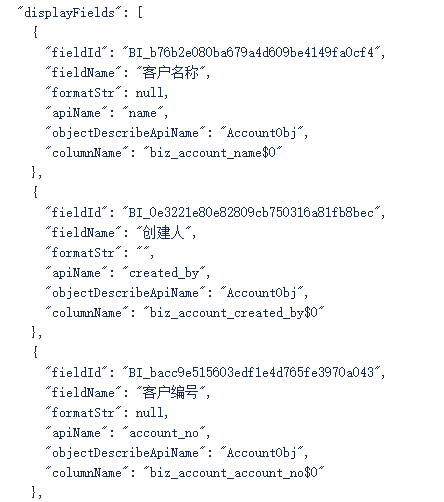

报表头各字段说明表

字段	字段含义	返回样例
objectDescribeApiName	pass对象描述	"objectDescribeApiName": "AccountObj"
formatStr	格式化信息	"formatStr": null
fieldName	字段展示名称	"fieldName": "客户名称"
fieldID	字段主键	"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4"
columName	唯一列名	"columnName": "biz_account_name$0"
apiName	pass字段描述	"apiName": "name"

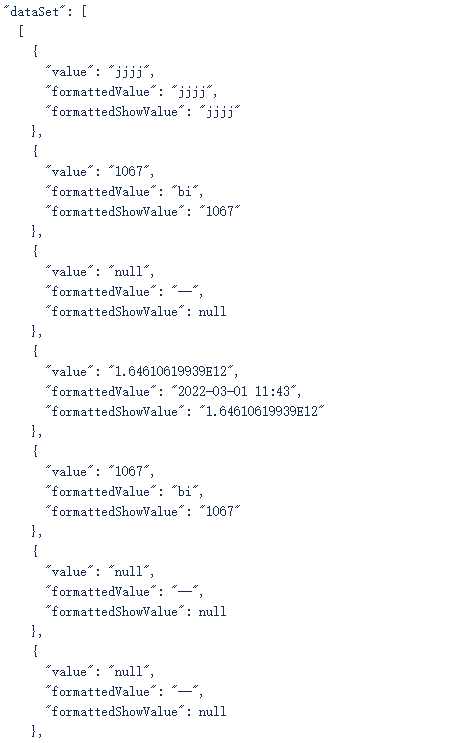

报表数据详细信息字段说明表

字段	字段含义	返回样例
value	字段值	"value": "jjjj"
formattedValue	字段展示名称	"formattedValue": "jjjj"
formattedShowValue	悬浮值	"formattedShowValue": "jjjj"

1.1.6 函数DEMO1

/*********************加载图表数据**************************/
+++++++++++++++++++++++++++++++++++++++++++++++++Fx.BI.getFiltersResult(<String viewId>)方法+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
===================================================================================================================================================================
def(isError4,data4,errorMsg4) = Fx.BI.loadViewData("BI_62174baf180c0b000183a7a6")
if(!isError4){
  def page = data4["page"]
  log.info("第1页数据集："+data4["dataSet"])

====================================================================================================================================================================
+++++++++++如果要查询所有数据集，要联合 Fx.BI.pageLoadViewData(<String viewId>,<Integer pageNumber>,<Integer pageSize>)方法，结合这两部分的代码+++++++++++++++++++++
====================================================================================================================================================================

  if(page!=null){
  def pageCount = page["pageCount"] as Integer
  def pageSize = page["pageSize"] as Integer
  if(pageCount>1){
    Range range = Ranges.of(2,pageCount.intValue())
  range.each { i ->
    def (isErrorTmp,dataTmp,errorMsgTmp) = Fx.BI.pageLoadViewData("BI_62174baf180c0b000183a7a6",i,pageSize)
    log.info("第"+i+"页数据集:"+dataTmp["dataSet"])
    /*拿到DataSet就可以业务自己后续处理了*/
  }
  }
  }
}

1.2 加载第i页图表数据 Fx.BI.pageLoadViewData(<String viewId>,<Integer pageNumber>,<Integer pageSize>)

1.2.1 函数用途

查询第i页图表数据

注意：此函数可以在已知有多少页的情况下进行查询每页的数据集，通常可以配合方法Fx.BI.loadViewData(<String viewId>)进行查找所有页数据集，详细见代码DEMO1

1.2.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	图表ID	“BI_62174baf180c0b000183a7a6”
pageNumber	Integer	是	页码	1
pageSize	Integer	是	单页记录数	20

1.2.3 返回值说明

参数	类型	说明
参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
dispalyFields	Object	表头信息
dataSet	Object	结果数据集

1.2.4 返回值示例

图表数据返回的结构统一为二维表，表头和数据集分开返回，成对映射

{
  "code": 200,
  "message": "success",
  "i18nCode": null,
  "data": {
    "page": {
      "pageSize": 20,
      "pageNumber": 1,
      "pageCount": 1,
      "totalCount": 3
    },
    "displayFields": [
      {
        "fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4",
        "fieldName": "客户名称",
        "formatStr": null,
        "apiName": "name",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_name$0"
      },
      {
        "fieldId": "BI_0e3221e80e82809cb750316a81fb8bec",
        "fieldName": "创建人",
        "formatStr": "",
        "apiName": "created_by",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_created_by$0"
      },
      {
        "fieldId": "BI_bacc9e515603edf1e4d765fe3970a043",
        "fieldName": "客户编号",
        "formatStr": null,
        "apiName": "account_no",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_account_no$0"
      },
      {
        "fieldId": "BI_39346e9a9deba83f255db6867dea0f4e",
        "fieldName": "创建时间",
        "formatStr": "yyyy-MM-dd HH:mm",
        "apiName": "create_time",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_create_time$0"
      },
      {
        "fieldId": "BI_92f9670f6a4ed14d17cebabf8501c4f9",
        "fieldName": "最后修改人",
        "formatStr": "",
        "apiName": "last_modified_by",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_last_modified_by$0"
      },
      {
        "fieldId": "BI_86142383c45f86fa2be8c6884dce6eeb",
        "fieldName": "客户层级",
        "formatStr": "",
        "apiName": "account_path",
        "objectDescribeApiName": "AccountObj",
        "columnName": "biz_account_account_path$0"
      },
      {
        "fieldId": "BI_2fa0b164273097ce020c607c71b28dc8",
        "fieldName": "客户行业",
        "formatStr": "",
        "apiName": "field_IGh6L__c",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_field_igh6l__c$0"
      },
      {
        "fieldId": "BI_49ccf044b0b6b9b720da8006f37b8474",
        "fieldName": "到账日期",
        "formatStr": "yyyy-MM-dd",
        "apiName": "field_rewsS__c",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_field_rewss__c$0"
      },
      {
        "fieldId": "BI_4865460605f3905d910d1bffa401a426",
        "fieldName": "value0",
        "formatStr": "",
        "apiName": "value0",
        "objectDescribeApiName": "AccountObj",
        "columnName": "customer_udef_value0$0"
      }
    ],
    "dataSet": [
      [
        {
          "value": "jjjj",
          "formattedValue": "jjjj",
          "formattedShowValue": "jjjj"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1.64610619939E12",
          "formattedValue": "2022-03-01 11:43",
          "formattedShowValue": "1.64610619939E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1646841600000",
          "formattedValue": "2022-03-10",
          "formattedShowValue": "1646841600000"
        },
        {
          "value": "621d9656a5db41000156aae0",
          "formattedValue": "621d9656a5db41000156aae0",
          "formattedShowValue": "621d9656a5db41000156aae0"
        }
      ],
      [
        {
          "value": "测试客户",
          "formattedValue": "测试客户",
          "formattedShowValue": "测试客户"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1.646135527393E12",
          "formattedValue": "2022-03-01 19:52",
          "formattedShowValue": "1.646135527393E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1646496000000",
          "formattedValue": "2022-03-06",
          "formattedShowValue": "1646496000000"
        },
        {
          "value": "621e08e6a5db4100016247ec",
          "formattedValue": "621e08e6a5db4100016247ec",
          "formattedShowValue": "621e08e6a5db4100016247ec"
        }
      ],
      [
        {
          "value": "费用报销用户1",
          "formattedValue": "费用报销用户1",
          "formattedShowValue": "费用报销用户1"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "1",
          "formattedValue": "1",
          "formattedShowValue": "1"
        },
        {
          "value": "1.645172412386E12",
          "formattedValue": "2022-02-18 16:20",
          "formattedShowValue": "1.645172412386E12"
        },
        {
          "value": "1067",
          "formattedValue": "bi",
          "formattedShowValue": "1067"
        },
        {
          "value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",
          "formattedValue": "费用报销客户上级客户/费用报销用户1",
          "formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"
        },
        {
          "value": "null",
          "formattedValue": "--",
          "formattedShowValue": null
        },
        {
          "value": "1645113600000",
          "formattedValue": "2022-02-18",
          "formattedShowValue": "1645113600000"
        },
        {
          "value": "620f56bccb42760001e9d174",
          "formattedValue": "620f56bccb42760001e9d174",
          "formattedShowValue": "620f56bccb42760001e9d174"
        }
      ]
    ]
  }
}

1.2.5 报表表头信息以及报表数据信息展示

报表头各字段说明表

字段	字段含义	返回样例
fieldID	字段主键	"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4"
fieldName	字段展示名称	"fieldName": "客户名称"
formatStr	格式化信息	"formatStr": null
apiName	pass字段描述	"apiName": "name"
objectDescribeApiName	pass对象描述	"objectDescribeApiName": "AccountObj"
columName	唯一列名	"columnName": "biz_account_name$0"

报表数据详细信息字段说明表

字段	字段含义	返回样例
value	字段值	"value": "jjjj"
formattedValue	字段展示名称	"formattedValue": "jjjj"
formattedShowValue	悬浮值	"formattedShowValue": "jjjj"

1.2.6 函数DEMO2

/**查询第i页数据集**/
+++++++++++++++++++++Fx.BI.pageLoadViewData(<String viewId>,<Integer pageNumber>,<Integer pageSize>)方法++++++++++++++++++++++++++++++
======================================================================================================================================
    def (isErrorTmp,dataTmp,errorMsgTmp) = Fx.BI.pageLoadViewData("BI_62174baf180c0b000183a7a6",i,pageSize)
    log.info("第"+i+"页数据集:"+dataTmp["dataSet"])
    /*拿到DataSet就可以业务自己后续处理了*/

1.3 条件查询图表数据（默认返回首页20条） Fx.BI.queryViewData(<String viewId>,<String defaultFilterOptionID>,<List filters>)

1.3.1 函数用途

注意：此函数只能查询一页的数据，如果要查询所有数据，需要联合这个函数Fx.BI.pageQueryViewData(<String viewId>,<Integer pageNum>,<Integer pageSize>,<String defaultFilterOptionID>,<List filters>)，看下方示例代码

1.3.2 参数说明

参数	类型	是否必须	说明	参数示例
参数	类型	是否必须	说明	参数示例
viewId	String	是	图表ID	“BI_62174baf180c0b000183a7a6”
defaultFilterOptionID	String	是	场景ID	“BI_59a3e59333b39e09b44e9db1”
filters	List	否	筛选条件（包括数据范围和场景筛选）	["filterId":"BI_62174baf180c0b000183a7aa","dataRangeId":"6"]

1.3.3 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
dispalyFields	Object	表头信息
dataSet	Object	结果数据集

1.3.4 返回值示例

图表数据返回的结构统一为二维表，表头和数据集分开返回，成对映射

{
"code": 200,
"message": "success",
"i18nCode": null,
"data": {
"page": {
"pageSize": 20,
"pageNumber": 20,
"pageCount": 1,
"totalCount": 2
},
"displayFields": [
{
"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4",
"fieldName": "客户名称",
"apiName": "name",
"objectDescribeApiName": "AccountObj",
"columnName": "biz_account_name$0"
},
{
"fieldId": "BI_bacc9e515603edf1e4d765fe3970a043",
"fieldName": "客户编号",
"apiName": "account_no",
"objectDescribeApiName": "AccountObj",
"columnName": "biz_account_account_no$0"
}
],
"dataSet": [
[
{
"value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",
"formattedValue": "费用报销客户上级客户/费用报销用户1",
"formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"
},
{
"value": "1645113600000",
"formattedValue": "2022-02-18",
"formattedShowValue": "1645113600000"
}
]
]
}
}

报表头各字段说明表

字段	字段含义	返回样例
fieldID	字段主键	"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4"
fieldName	字段展示名称	"fieldName": "客户名称"
apiName	pass字段描述	"apiName": "name"
objectDescribeApiName	pass对象描述	"objectDescribeApiName": "AccountObj"
columName	唯一列名	"columnName": "biz_account_name$0"

报表数据详细信息字段说明表

字段	字段含义	返回样例
value	字段值	"value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",
formattedValue	字段展示名称	"formattedValue": "费用报销客户上级客户/费用报销用户1",
formattedShowValue	悬浮值	"formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"

1.3.5 函数DEMO3

/**条件查询*/
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++Fx.BI.queryViewData(<String viewId>,<String optionId>,<List filters>)方法，按条件查询表中数据（只能查询一页数据）++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
==========================================================================================================================================================================================================================================

List filters = [["filterId":"BI_62174baf180c0b000183a7aa","dateRangeId":"6"]]
def(isError6,data6,errorMsg6) = Fx.BI.queryViewData("BI_62174baf180c0b000183a7a6","BI_59a3e59333b39e09b44e9db1",filters)
if(!isError6){
  def page6 = data6["page"]
  log.info("第1页数据集："+data6["dataSet"])

===========================================================================================================================================================================================================================================
++++++++++++++++++++++++++++++如果要查询所有数据联合下方的Fx.BI.pageQueryViewData(<String viewId>,<Integer pageNumber>,<Integer pageSize>,<String defaultFilterOptionID>,<List filters>)方法+++++++++++++++++++++++++++++++++++++++++++++++
===========================================================================================================================================================================================================================================
  if(page6!=null){
  def pageCount6 = page6["pageCount"] as Integer
  def pageSize6 = page6["pageSize"] as Integer
  if(pageCount6>1){
    Range range6 = Ranges.of(2,pageCount6.intValue())
  range6.each { i ->
    def (isErrorTmp,dataTmp,errorMsgTmp) = Fx.BI.pageQueryViewData("BI_62174baf180c0b000183a7a6",i,pageSize6,"BI_59a3e59333b39e09b44e9db1",filters)
    log.info("第"+i+"页数据集:"+dataTmp["dataSet"])
    /*拿到DataSet就可以业务自己后续处理了*/
  }
  }
  }
}else{
  log.info("条件查询失败:"+errorMsg6)
}

1.4 条件查询第i页数据集 Fx.BI.pageQueryViewData(<String viewId>,<Integer pageNumber>,<Integer pageSize>,<String defaultFilterOptionID>,<List filters>)

1.4.1 函数用途

按指定条件和指定页数查询图表数据

注意：此函数可以在已知有多少页的情况下进行查询每页的数据集，通常可以配合方法Fx.BI.queryViewData(<String viewId>,<String defaultFilterOptionID>,<List filters>) 进行查找所有页数据集，详细见代码DEMO3

1.4.2 参数说明

参数	类型	是否必须	说明
viewId	String	是	图表ID
pageNumber	Integer	是	页码
pageSize	Integer	是	单页记录数
defaultFilterOptionID	String	是	权限场景
filters	List	是	筛选条件

1.4.3 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
dispalyFields	Object	表头信息
dataSet	Object	结果数据集

1.4.4 返回值示例

图表数据返回的结构统一为二维表，表头和数据集分开返回，成对映射

{
"code": 200,
"message": "success",
"i18nCode": null,
"data": {
"page": {
"pageSize": 20,
"pageNumber": 20,
"pageCount": 1,
"totalCount": 2
},
"displayFields": [
{
"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4",
"fieldName": "客户名称",
"apiName": "name",
"objectDescribeApiName": "AccountObj",
"columnName": "biz_account_name$0"
},
{
"fieldId": "BI_bacc9e515603edf1e4d765fe3970a043",
"fieldName": "客户编号",
"apiName": "account_no",
"objectDescribeApiName": "AccountObj",
"columnName": "biz_account_account_no$0"
}
],
"dataSet": [
[
{
"value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",
"formattedValue": "费用报销客户上级客户/费用报销用户1",
"formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"
},
{
"value": "1645113600000",
"formattedValue": "2022-02-18",
"formattedShowValue": "1645113600000"
}
]
]
}
}

报表头各字段说明表

字段	字段含义	返回样例
字段	字段含义	返回样例
fieldID	字段主键	"fieldId": "BI_b76b2e080ba679a4d609be4149fa0cf4"
fieldName	字段展示名称	"fieldName": "客户名称"
apiName	pass字段描述	"apiName": "name"
objectDescribeApiName	pass对象描述	"objectDescribeApiName": "AccountObj"
columName	唯一列名	"columnName": "biz_account_name$0"

报表数据详细信息字段说明表

字段	字段含义	返回样例
value	字段值	"value": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174",
formattedValue	字段展示名称	"formattedValue": "费用报销客户上级客户/费用报销用户1",
formattedShowValue	悬浮值	"formattedShowValue": "620f56eacb42760001e9d6c1.620f56bccb42760001e9d174"

1.4.5 函数DEMO4

===========================================================================================================================================================================================================================================
+++++++++++++++++++++++++++++++++++++++++++++++++Fx.BI.pageQueryViewData(<String viewId>,<Integer pageNumber>,<Integer pageSize>,<String defaultFilterOptionID>,<List filters>)方法++++++++++++++++++++++++++++++++++++++++++++++++++++++++
===========================================================================================================================================================================================================================================
 /**条件查询第i页的图表数据集*/
def (isErrorTmp,dataTmp,errorMsgTmp) = Fx.BI.pageQueryViewData("BI_62174baf180c0b000183a7a6",i,pageSize6,"BI_59a3e59333b39e09b44e9db1",filters)
    log.info("第"+i+"页数据集:"+dataTmp["dataSet"])
    /*拿到DataSet就可以业务自己后续处理了*/

1.5 获取图表的数据范围以及场景 Fx.BI.getFiltersResult(<String viewId>)

1.5.1 函数用途

按指定条件查询图表的数据范围以及场景

1.5.2 参数说明

参数	类型	是否必须	说明
viewId	String	是	图表ID

1.5.3 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限404：未找到500：系统异常
message	String	返回消息
filterGroups	Object	数据范围信息
labelAndOptions	Object	场景信息

1.5.4 返回值示例

图表数据返回的结构统一为二维表，表头和数据集分开返回，成对映射

{
  "code": 200,
  "message": "success",
  "i18nCode": null,
  "data": {
    "filterGroups": [
      {
        "filters": [
          {
            "filterId": "BI_62174baf180c0b000183a7a9",
            "value1": "[{\"id\":999999,\"type\":\"c\"}]",
            "value2": "",
            "dateRangeId": null
          },
          {
            "filterId": "BI_62174baf180c0b000183a7aa",
            "value1": "2022-01-01",
            "value2": "2022-12-31",
            "dateRangeId": null
          },
          {
            "filterId": "BI_62174baf180c0b000183a7ab",
            "value1": "2022-01-01 00:00",
            "value2": "2022-12-31 23:59",
            "dateRangeId": null
          },
          {
            "filterId": "BI_62174baf180c0b000183a7ac",
            "value1": "[{\"id\":999999,\"type\":\"c\"}]",
            "value2": "",
            "dateRangeId": null
          }
        ]
      }
    ],
    "labelAndOptions": [
      {
        "defaultFilterOptionID": null,
        "defaultFilterOptionType": "UDF",
        "label": "场景",
        "defaultFilterOptions": [
          {
            "optionName": "全部",
            "isDefault": 1,
            "optionID": "BI_59a3e59333b39e09b44e9db1"
          },
          {
            "optionName": "我负责的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db2"
          },
          {
            "optionName": "我联合跟进的",
            "isDefault": 0,
            "optionID": "BI_171714538838884352"
          },
          {
            "optionName": "我服务的",
            "isDefault": 0,
            "optionID": "BI_171714538872438784"
          },
          {
            "optionName": "我参与的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db3"
          },
          {
            "optionName": "我负责部门的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db4"
          },
          {
            "optionName": "我下属负责的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db5"
          },
          {
            "optionName": "我下属联合跟进的",
            "isDefault": 0,
            "optionID": "BI_171714538939547648"
          },
          {
            "optionName": "我下属服务的",
            "isDefault": 0,
            "optionID": "BI_171714538973102080"
          },
          {
            "optionName": "我下属参与的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db6"
          },
          {
            "optionName": "共享给我的",
            "isDefault": 0,
            "optionID": "BI_59a3e59333b39e09b44e9db7"
          }
        ]
      }
    ]
  }
}

1.5.5 返回值代码与示例图对照展示

字段	字段含义	返回样例
dataRangeId	日期筛选需要	"dateRangeId": null
filterId	筛选器主键	"filterId": "BI_62174baf180c0b000183a7a9",
value1	默认筛选范围	"value1": "[{"id":999999,"type":"c"}]","value1": "[{"id":999999,"type":"c"}]",
value2	默认筛选范围	"value2": "",

场景信息（labelAndOptions）

字段	字段含义	返回样例
optionName	场景选项名称	"optionName": "全部"
isDefault	是否默认（1：默认）	"isDefault": 1
optionID	场景选项ID	"optionID": "BI_59a3e59333b39e09b44e9db1"

1.5.6 函数DEMO5

/*加载图表筛选器*/
++++++++++++++++++++++++++++++++++++++++++++++ Fx.BI.getFiltersResult(<String viewId>)方法++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
=====================================================================================================================================================
def(isError5,data5,errorMsg5) = Fx.BI.getFiltersResult("BI_62174baf180c0b000183a7a6")
if(!isError5){
  log.info("筛选器信息:"+data5["filterGroups"])
  log.info("场景信息:"+data5["labelAndOptions"])
  /*可根据FilterId修改筛选器值进行查询，值的结构可参考报表运行态传参结构*/
}

1.6 使用filterList注意事项：日期筛选case和枚举项

注意：如果筛选范围为日期筛选的话，需要在filterList添加一个条件，如果日期筛选不加这个条件是会失败的

例如：”dataRangeId“：6，代表本年度，需要的枚举值和介绍见下图

二、交叉表函数使用说明

附：交叉表结构解析

♦列分组—colGroupFields

♦行分组—rowGroupFields

♦表头—headerFields

♦数据集—dataSet

♦总计表头信息—summaryDisplayFields

♦总计数据集—summaryDataSet

2.1 通过交叉表Id查询交叉表（默认加载交叉表首页20条数据） Fx.BI.queryPivotViewDataById(<String viewId>)

2.1.1 函数用途

通过viewId查询交叉表数据

2.1.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	交叉表ID	“BI_62973467376efe000172be38”

2.1.3 函数举例

def(isError,data,errorMsg) = Fx.BI.queryPivotViewDataById("BI_62973467376efe000172be38")
if(!isError){
  log.info("分页信息:"+data["page"])
  log.info("表头信息:"+data["headerFields"])
  log.info("数据集:"+data["dataSet"])
  log.info("列分组:"+data["colGroupFields"])
  log.info("行分组:"+data["rowGroupFields"])
  log.info("统计列:"+data["statFields"])
  log.info("summaryDataSet:"+data["summaryDataSet"])
  log.info("summaryDisplayFields:"+data["summaryDisplayFields"])
}else{
  log.info("查询失败:"+errorMsg)
}

2.1.4 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
headerFields	Object	表头信息
dataSet	Object	结果数据集
colGroupFields	Object	列分组
rowGroupFields	Object	行分组
statFields	Object	统计列
summaryDataSet	Object	总计数据集
summaryDisplayFields	Object	总计表头信息

2.1.5 返回值示例

图表数据返回的结构统一为二维表，成对映射

{
    "code": 200,
    "message": "success",
    "i18nCode": null,
    "data": {
        "page": {
            "pageSize": 20,
            "pageNumber": 1,
            "pageCount": 1,
            "totalCount": 2
        },
        "dataSet": [
            [
                {
                    "value": "--",
                    "formattedValue": "--"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                }
            ],
            [
                {
                    "value": "总计",
                    "formattedValue": "总计"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                }
            ]
        ],
        "headerFields": [
            [
                {
                    "value": "部门",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": null,
                    "fieldName": "部门",
                    "columnName": "object_oz2i0__c_field_6ejpc__c$0",
                    "formatStr": ""
                },
                {
                    "value": "1001",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": "销售部门",
                    "fieldName": "部门",
                    "columnName": null,
                    "formatStr": null
                },
                {
                    "value": "总计",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": "总计",
                    "fieldName": "部门",
                    "columnName": null,
                    "formatStr": null
                }
            ],
            [
                {
                    "value": "客户名称",
                    "fieldID": "BI_3f378638510641067008767e02cf6563",
                    "formattedValue": null,
                    "fieldName": "客户名称",
                    "columnName": "object_oz2i0__c_field_21fnw__c$0",
                    "formatStr": ""
                },
                {
                    "value": "金额",
                    "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                    "formattedValue": null,
                    "fieldName": "金额",
                    "columnName": "object_oz2i0__c_field_6rfqc__c$0",
                    "formatStr": "#,##0.000"
                },
                {
                    "value": "金额",
                    "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                    "formattedValue": null,
                    "fieldName": "金额",
                    "columnName": "object_oz2i0__c_field_6rfqc__c$0",
                    "formatStr": "#,##0.000"
                }
            ]
        ],
        "colGroupFields": [
            {
                "fieldId": "BI_3f378638510641067008767e02cf6563",
                "fieldName": "客户名称",
                "formatStr": "",
                "columnName": "object_oz2i0__c_field_21fnw__c$0"
            }
        ],
        "rowGroupFields": [
            {
                "fieldId": "BI_1416823ffb7298cc11838cedb4b59fdf",
                "fieldName": "部门",
                "formatStr": "",
                "columnName": "object_oz2i0__c_field_6ejpc__c$0"
            }
        ],
        "statFields": [
            {
                "columnName": null,
                "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                "fieldName": "金额",
                "crmFieldName": "field_6rfqC__c",
                "crmObjName": "object_oz2i0__c",
                "dbFieldName": "field_6rfqC__c",
                "dbObjName": "object_oz2i0__c"
            }
        ],
        "summaryDataSet": {
            "object_oz2i0__c_field_6rfqc__c$0": [
                {
                    "value": "10.0",
                    "formattedValue": "10.000",
                    "formattedShowValue": "10.0",
                    "aggType": "2",
                    "aggTypeCaption": "求和"
                }
            ]
        },
        "summaryDisplayFields": [
            {
                "columnName": null,
                "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                "fieldName": "金额",
                "crmFieldName": "field_6rfqC__c",
                "crmObjName": "object_oz2i0__c",
                "dbFieldName": "field_6rfqC__c",
                "dbObjName": "object_oz2i0__c"
            }
        ]
    }
}

2.2 通过viewId和分页信息page查询交叉表 Fx.BI.queryPivotViewDataByPage(<String viewId>,<Integer pageNumber>,<Integer pageSize>)

2.2.1 函数用途

通过viewId和分页信息page查询交叉表,用户可以自定义查询想要查询的页码，并规定每页条数

2.2.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	交叉表ID	“BI_62973467376efe000172be38”
pageNumber	Integer	是	页码	1
pageSize	Integer	是	每页规定条数	1

2.2.3 函数举例

==========================查询第一页，每页一条数据的交叉表数据===============================
=============================================================================================
def(isError,data,errorMsg) = Fx.BI.queryPivotViewDataByPage("BI_62973467376efe000172be38",1,1)
if(!isError){
  log.info("分页信息:"+data["page"])
  log.info("表头信息:"+data["headerFields"])
  log.info("数据集:"+data["dataSet"])
  log.info("列分组:"+data["colGroupFields"])
  log.info("行分组:"+data["rowGroupFields"])
  log.info("统计列:"+data["statFields"])
  log.info("总计数据集:"+data["summaryDataSet"])
  log.info("总计表头信息:"+data["summaryDisplayFields"])
}else{
  log.info("查询失败:"+errorMsg)
}

2.2.4 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
headerFields	Object	表头信息
dataSet	Object	结果数据集
colGroupFields	Object	列分组
rowGroupFields	Object	行分组
statFields	Object	统计列
summaryDataSet	Object	总计数据集
summaryDisplayFields	Object	总计表头信息

2.2.5 返回值示例

图表数据返回的结构统一为二维表，成对映射

{
    "code": 200,
    "message": "success",
    "i18nCode": null,
    "data": {
        "page": {
            "pageSize": 1,
            "pageNumber": 1,
            "pageCount": 2,
            "totalCount": 2
        },
        "dataSet": [
            [
                {
                    "value": "--",
                    "formattedValue": "--"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                }
            ]
        ],
        "headerFields": [
            [
                {
                    "value": "部门",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": null,
                    "fieldName": "部门",
                    "columnName": "object_oz2i0__c_field_6ejpc__c$0",
                    "formatStr": ""
                },
                {
                    "value": "1001",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": "销售部门",
                    "fieldName": "部门",
                    "columnName": null,
                    "formatStr": null
                },
                {
                    "value": "总计",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": "总计",
                    "fieldName": "部门",
                    "columnName": null,
                    "formatStr": null
                }
            ],
            [
                {
                    "value": "客户名称",
                    "fieldID": "BI_3f378638510641067008767e02cf6563",
                    "formattedValue": null,
                    "fieldName": "客户名称",
                    "columnName": "object_oz2i0__c_field_21fnw__c$0",
                    "formatStr": ""
                },
                {
                    "value": "金额",
                    "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                    "formattedValue": null,
                    "fieldName": "金额",
                    "columnName": "object_oz2i0__c_field_6rfqc__c$0",
                    "formatStr": "#,##0.000"
                },
                {
                    "value": "金额",
                    "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                    "formattedValue": null,
                    "fieldName": "金额",
                    "columnName": "object_oz2i0__c_field_6rfqc__c$0",
                    "formatStr": "#,##0.000"
                }
            ]
        ],
        "colGroupFields": [
            {
                "fieldId": "BI_3f378638510641067008767e02cf6563",
                "fieldName": "客户名称",
                "formatStr": "",
                "columnName": "object_oz2i0__c_field_21fnw__c$0"
            }
        ],
        "rowGroupFields": [
            {
                "fieldId": "BI_1416823ffb7298cc11838cedb4b59fdf",
                "fieldName": "部门",
                "formatStr": "",
                "columnName": "object_oz2i0__c_field_6ejpc__c$0"
            }
        ],
        "statFields": [
            {
                "columnName": null,
                "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                "fieldName": "金额",
                "crmFieldName": "field_6rfqC__c",
                "crmObjName": "object_oz2i0__c",
                "dbFieldName": "field_6rfqC__c",
                "dbObjName": "object_oz2i0__c"
            }
        ],
        "summaryDataSet": {
            "object_oz2i0__c_field_6rfqc__c$0": [
                {
                    "value": "10.0",
                    "formattedValue": "10.000",
                    "formattedShowValue": "10.0",
                    "aggType": "2",
                    "aggTypeCaption": "求和"
                }
            ]
        },
        "summaryDisplayFields": [
            {
                "columnName": null,
                "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                "fieldName": "金额",
                "crmFieldName": "field_6rfqC__c",
                "crmObjName": "object_oz2i0__c",
                "dbFieldName": "field_6rfqC__c",
                "dbObjName": "object_oz2i0__c"
            }
        ]
    }
}

2.3 通过viewId，filterList和defaultFilterOptionId查询交叉表数据 Fx.BI.queryPivotViewDataByFilter(<String viewId>,<String defaultFilterOptionId >,<List filterList>)

2.3.1 函数用途

通过viewId和分页信息page查询交叉表,用户可以自定义查询想要查询的页码，并规定每页条数

2.3.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	交叉表ID	“BI_62973467376efe000172be38”
defaultFilterOptionId	String	是	场景Id	“BI_59a3e59333b39e09b44e9db2”
filterList	Integer	是	筛选条件	[["filterId":"BI_62c68112deef7b0001c1f756","value1":"[{"id":1001,"type":"g"}]","value2":""]]

2.3.3 filterList结构说明

参数	类型	是否必须	说明	参数示例
filterId	String	是	筛选ID	“BI_62c68112deef7b0001c1f756”
value1	String	是	筛选值	"[{"id":1001,"type":"g"}]"
value2	Integer	是	筛选值	“”
dateRangeId	Integer	否	日期筛选需要用到的枚举值	16 （注意：枚举值见-》6、使用filterList注意事项：日期筛选case和枚举项）

2.3.4 函数举例

==========================查询特定的场景和筛选的交叉表数据===============================
=============================================================================================
List filterList = [["filterId":"BI_62c68112deef7b0001c1f756","value1":"[{\"id\":1001,\"type\":\"g\"}]","value2":""]]
def(isError,data,errorMsg) = Fx.BI.queryPivotViewDataByFilter("BI_62973467376efe000172be38","BI_59a3e59333b39e09b44e9db2",filterList)
if(!isError){
  log.info("分页信息:"+data["page"])
  log.info("表头信息:"+data["headerFields"])
  log.info("数据集:"+data["dataSet"])
  log.info("列分组:"+data["colGroupFields"])
  log.info("行分组:"+data["rowGroupFields"])
  log.info("统计列:"+data["statFields"])
  log.info("总计数据集:"+data["summaryDataSet"])
  log.info("总计表头信息:"+data["summaryDisplayFields"])
}else{
  log.info("查询失败:"+errorMsg)
}

2.3.5 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
headerFields	Object	表头信息
dataSet	Object	结果数据集
colGroupFields	Object	列分组
rowGroupFields	Object	行分组
statFields	Object	统计列
summaryDataSet	Object	总计数据集
summaryDisplayFields	Object	总计表头信息

2.3.6 返回值示例

图表数据返回的结构统一为二维表，成对映射

{
    "code": 200,
    "message": "success",
    "i18nCode": null,
    "data": {
        "page": {
            "pageSize": 20,
            "pageNumber": 1,
            "pageCount": 1,
            "totalCount": 2
        },
        "dataSet": [
            [
                {
                    "value": "--",
                    "formattedValue": "--"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                }
            ],
            [
                {
                    "value": "总计",
                    "formattedValue": "总计"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                }
            ]
        ],
        "headerFields": [
            [
                {
                    "value": "部门",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": null,
                    "fieldName": "部门",
                    "columnName": "object_oz2i0__c_field_6ejpc__c$0",
                    "formatStr": ""
                },
                {
                    "value": "1001",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": "销售部门",
                    "fieldName": "部门",
                    "columnName": null,
                    "formatStr": null
                },
                {
                    "value": "总计",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": "总计",
                    "fieldName": "部门",
                    "columnName": null,
                    "formatStr": null
                }
            ],
            [
                {
                    "value": "客户名称",
                    "fieldID": "BI_3f378638510641067008767e02cf6563",
                    "formattedValue": null,
                    "fieldName": "客户名称",
                    "columnName": "object_oz2i0__c_field_21fnw__c$0",
                    "formatStr": ""
                },
                {
                    "value": "金额",
                    "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                    "formattedValue": null,
                    "fieldName": "金额",
                    "columnName": "object_oz2i0__c_field_6rfqc__c$0",
                    "formatStr": "#,##0.000"
                },
                {
                    "value": "金额",
                    "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                    "formattedValue": null,
                    "fieldName": "金额",
                    "columnName": "object_oz2i0__c_field_6rfqc__c$0",
                    "formatStr": "#,##0.000"
                }
            ]
        ],
        "colGroupFields": [
            {
                "fieldId": "BI_3f378638510641067008767e02cf6563",
                "fieldName": "客户名称",
                "formatStr": "",
                "columnName": "object_oz2i0__c_field_21fnw__c$0"
            }
        ],
        "rowGroupFields": [
            {
                "fieldId": "BI_1416823ffb7298cc11838cedb4b59fdf",
                "fieldName": "部门",
                "formatStr": "",
                "columnName": "object_oz2i0__c_field_6ejpc__c$0"
            }
        ],
        "statFields": [
            {
                "columnName": null,
                "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                "fieldName": "金额",
                "crmFieldName": "field_6rfqC__c",
                "crmObjName": "object_oz2i0__c",
                "dbFieldName": "field_6rfqC__c",
                "dbObjName": "object_oz2i0__c"
            }
        ],
        "summaryDataSet": {
            "object_oz2i0__c_field_6rfqc__c$0": [
                {
                    "value": "10.0",
                    "formattedValue": "10.000",
                    "formattedShowValue": "10.0",
                    "aggType": "2",
                    "aggTypeCaption": "求和"
                }
            ]
        },
        "summaryDisplayFields": [
            {
                "columnName": null,
                "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                "fieldName": "金额",
                "crmFieldName": "field_6rfqC__c",
                "crmObjName": "object_oz2i0__c",
                "dbFieldName": "field_6rfqC__c",
                "dbObjName": "object_oz2i0__c"
            }
        ]
    }
}

2.4 通过viewId，分页信息page，filterList和defaultFilterOptionId、查询交叉表数据 Fx.BI.queryPivotReportData(<String viewId>,<Integer pageNumber>,<Integer pageSize>,<String defaultFilterOptionId >,<List filterList>)

2.4.1 函数用途

通过viewId和筛选条件filterList、场景defaultFilterOptionId，查询交叉表

2.4.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	交叉表ID	“BI_62973467376efe000172be38”
defaultFilterOptionId	String	是	场景Id	“BI_59a3e59333b39e09b44e9db2”
filterList	Integer	是	筛选条件	[["filterId":"BI_62c68112deef7b0001c1f756","value1":"[{"id":1001,"type":"g"}]","value2":""]]
pageNumber	Integer	是	页码	1
pageSize	Integer	是	每页的条数	1

2.4.3 filterList结构说明

参数	类型	是否必须	说明	参数示例
filterId	String	是	筛选ID	“BI_62c68112deef7b0001c1f756”
value1	String	是	筛选值	"[{"id":1001,"type":"g"}]”
value2	Integer	是	筛选值	“”
dateRangeId	Integer	否	日期筛选需要用到的枚举值	16 （注意：枚举值见-》6、使用filterList注意事项：日期筛选case和枚举项）

2.4.4 函数举例

==========================通过分页信息page、viewId、场景Id、筛选器filterList查询的交叉表数据===============================
=============================================================================================
List filterList = [["filterId":"BI_62c68112deef7b0001c1f756","value1":"[{\"id\":1001,\"type\":\"g\"}]","value2":""]]
def(isError,data,errorMsg) = Fx.BI.queryPivotReportData("BI_62973467376efe000172be38",1,1,"BI_59a3e59333b39e09b44e9db2",filterList)
if(!isError){
  log.info("分页信息:"+data["page"])
  log.info("表头信息:"+data["headerFields"])
  log.info("数据集:"+data["dataSet"])
  log.info("列分组:"+data["colGroupFields"])
  log.info("行分组:"+data["rowGroupFields"])
  log.info("统计列:"+data["statFields"])
  log.info("总计数据集:"+data["summaryDataSet"])
  log.info("总计表头信息:"+data["summaryDisplayFields"])
}else{
  log.info("查询失败:"+errorMsg)
}

2.4.5 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
headerFields	Object	表头信息
dataSet	Object	结果数据集
colGroupFields	Object	列分组
rowGroupFields	Object	行分组
statFields	Object	统计列
summaryDataSet	Object	总计数据集
summaryDisplayFields	Object	总计表头信息

2.4.6 返回值示例

图表数据返回的结构统一为二维表，成对映射

{
    "code": 200,
    "message": "success",
    "i18nCode": null,
    "data": {
        "page": {
            "pageSize": 1,
            "pageNumber": 1,
            "pageCount": 2,
            "totalCount": 2
        },
        "dataSet": [
            [
                {
                    "value": "--",
                    "formattedValue": "--"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                },
                {
                    "value": "10.0",
                    "formattedValue": "10.000"
                }
            ]
        ],
        "headerFields": [
            [
                {
                    "value": "部门",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": null,
                    "fieldName": "部门",
                    "columnName": "object_oz2i0__c_field_6ejpc__c$0",
                    "formatStr": ""
                },
                {
                    "value": "1001",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": "销售部门",
                    "fieldName": "部门",
                    "columnName": null,
                    "formatStr": null
                },
                {
                    "value": "总计",
                    "fieldID": "BI_1416823ffb7298cc11838cedb4b59fdf",
                    "formattedValue": "总计",
                    "fieldName": "部门",
                    "columnName": null,
                    "formatStr": null
                }
            ],
            [
                {
                    "value": "客户名称",
                    "fieldID": "BI_3f378638510641067008767e02cf6563",
                    "formattedValue": null,
                    "fieldName": "客户名称",
                    "columnName": "object_oz2i0__c_field_21fnw__c$0",
                    "formatStr": ""
                },
                {
                    "value": "金额",
                    "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                    "formattedValue": null,
                    "fieldName": "金额",
                    "columnName": "object_oz2i0__c_field_6rfqc__c$0",
                    "formatStr": "#,##0.000"
                },
                {
                    "value": "金额",
                    "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                    "formattedValue": null,
                    "fieldName": "金额",
                    "columnName": "object_oz2i0__c_field_6rfqc__c$0",
                    "formatStr": "#,##0.000"
                }
            ]
        ],
        "colGroupFields": [
            {
                "fieldId": "BI_3f378638510641067008767e02cf6563",
                "fieldName": "客户名称",
                "formatStr": "",
                "columnName": "object_oz2i0__c_field_21fnw__c$0"
            }
        ],
        "rowGroupFields": [
            {
                "fieldId": "BI_1416823ffb7298cc11838cedb4b59fdf",
                "fieldName": "部门",
                "formatStr": "",
                "columnName": "object_oz2i0__c_field_6ejpc__c$0"
            }
        ],
        "statFields": [
            {
                "columnName": null,
                "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                "fieldName": "金额",
                "crmFieldName": "field_6rfqC__c",
                "crmObjName": "object_oz2i0__c",
                "dbFieldName": "field_6rfqC__c",
                "dbObjName": "object_oz2i0__c"
            }
        ],
        "summaryDataSet": {
            "object_oz2i0__c_field_6rfqc__c$0": [
                {
                    "value": "10.0",
                    "formattedValue": "10.000",
                    "formattedShowValue": "10.0",
                    "aggType": "2",
                    "aggTypeCaption": "求和"
                }
            ]
        },
        "summaryDisplayFields": [
            {
                "columnName": null,
                "fieldID": "BI_0f46eb539465b5746c1798ad9789c83a",
                "fieldName": "金额",
                "crmFieldName": "field_6rfqC__c",
                "crmObjName": "object_oz2i0__c",
                "dbFieldName": "field_6rfqC__c",
                "dbObjName": "object_oz2i0__c"
            }
        ]
    }
}

三、拼表函数使用说明

附：拼表结构解析

♦表头—displayFields

♦数据集—dataSet

3.1 通过图表Id查询拼表（默认加载拼表首页20条数据） Fx.BI.queryLwtViewDataById(<String viewId>)

3.1.1 函数用途

通过viewId查询拼表数据

3.1.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	拼表ID	“BI_lwt_1657506871248”

3.1.3 函数举例

def(isError,data,errorMsg) = Fx.BI.queryLwtViewDataById("BI_lwt_1657506871248")
if(!isError){
log.info("分页信息:"+data["page"])
log.info("表头信息:"+data["displayFields"])
log.info("数据集:"+data["dataSet"])
}else{
log.info("查询失败:"+errorMsg)
}

3.1.4 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
displayFields	Object	表头信息
dataSet	Object	结果数据集

3.1.5 返回值示例

图表数据返回的结构统一为二维表，成对映射

{
    "code": 200,
    "message": "success",
    "i18nCode": null,
    "data": {
        "displayFields": [
            [
                {
                    "fieldId": "BI_lwt_calc_6ad70579d41f4901aee273eb7e9aeb0b",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_b421df3270824345b6c5dc13f2fea14e",
                    "fieldName": "年",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_f289f266427f4cedba1a746c6b058298",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_bba3a46afcf14f158855fa733de92205",
                    "fieldName": "季",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_83cb73bcc82f4f2897e79799d0ff6d9f",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_a010a7cbf99646ae89eef3e6deb64557",
                    "fieldName": "月",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_7e11d20cdabb47fb9ed0fe6291ee7e2b",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                }
            ],
            [
                {
                    "fieldId": "BI_5be1388756fc11448c4567dc",
                    "fieldName": "产品线",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "MultiSelectEnum",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "product_line",
                    "linkObjName": "ProductObj"
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                }
            ]
        ],
        "dataSet": [
            [
                {
                    "value": "产品线1",
                    "displayValue": "产品线1",
                    "dataFormatStr": ""
                },
                {
                    "value": "2625.0",
                    "displayValue": "2625",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "26250.0",
                    "displayValue": "2.63万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "66934.0",
                    "displayValue": "66934",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "669340.0",
                    "displayValue": "66.93万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0.00",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "23464.0",
                    "displayValue": "23464",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "234640.0",
                    "displayValue": "23.46万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "143423.0",
                    "displayValue": "143423",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "1434230.0",
                    "displayValue": "143.42万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "18389.0",
                    "displayValue": "18389",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "183890.0",
                    "displayValue": "18.39万",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "23464.0",
                    "displayValue": "23464",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "234640.0",
                    "displayValue": "23.46万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "143423.0",
                    "displayValue": "143423",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "1434230.0",
                    "displayValue": "143.42万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "240947.0",
                    "displayValue": "240947",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "2409470.0",
                    "displayValue": "240.95万",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "23464.0",
                    "displayValue": "23464",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "234640.0",
                    "displayValue": "23.46万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "547561.0",
                    "displayValue": "547561",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "5475610.0",
                    "displayValue": "547.56万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "18389.0",
                    "displayValue": "18389",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "183890.0",
                    "displayValue": "18.39万",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "23464.0",
                    "displayValue": "23464",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "234640.0",
                    "displayValue": "23.46万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "547561.0",
                    "displayValue": "547561",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "5475610.0",
                    "displayValue": "547.56万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "240947.0",
                    "displayValue": "240947",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "2409470.0",
                    "displayValue": "240.95万",
                    "dataFormatStr": "0.00"
                }
            ]
        ],
        "page": {
            "pageSize": 20,
            "pageNumber": 1,
            "pageCount": 1,
            "totalCount": 5
        }
    }
}

3.2 通过viewId和分页信息page查询拼表 Fx.BI.queryLwtViewDataByPage(<String viewId>,<Integer pageNumber>,<Integer pageSize>)

3.2.1 函数用途

通过viewId和分页信息page查询拼表,用户可以自定义查询想要查询的页码，并规定每页条数

3.2.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	交叉表ID	“BI_lwt_1657506871248”
pageNumber	Integer	是	页码	1
pageSize	Integer	是	每页规定条数	1

3.2.3 函数举例

==========================查询第一页，每页一条数据的交叉表数据===============================
=============================================================================================
def(isError,data,errorMsg) = Fx.BI.queryLwtViewDataByPage("BI_lwt_1657506871248",1,1)
if(!isError){
  log.info("分页信息:"+data["page"])
  log.info("表头信息:"+data["displayFields"])
  log.info("数据集:"+data["dataSet"])
}else{
  log.info("查询失败:"+errorMsg)
}

3.2.4 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
displayFields	Object	表头信息
dataSet	Object	结果数据集

3.2.5 返回值示例

图表数据返回的结构统一为二维表，成对映射

{
    "code": 200,
    "message": "success",
    "i18nCode": null,
    "data": {
        "displayFields": [
            [
                {
                    "fieldId": "BI_lwt_calc_390f421f5d51471d889f27fe3bc1849b",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_c51e947793a4448e964e21a19855d637",
                    "fieldName": "年",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_ba0dcd60e4ca404b9f0c49278a776718",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_ccb483314eae4008a83cce58bf28b36f",
                    "fieldName": "季",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_a62e283869af4b29885c583f1ddf6934",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_e6f0d1ba2c3c428e9ab9818da6a00ae3",
                    "fieldName": "月",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_3d6e6fb55d924a61bd6ebec94bab1c84",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                }
            ],
            [
                {
                    "fieldId": "BI_5be1388756fc11448c4567dc",
                    "fieldName": "产品线",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "MultiSelectEnum",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "product_line",
                    "linkObjName": "ProductObj"
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                }
            ]
        ],
        "dataSet": [
            [
                {
                    "value": "产品线1",
                    "displayValue": "产品线1",
                    "dataFormatStr": ""
                },
                {
                    "value": "2625.0",
                    "displayValue": "2625",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "26250.0",
                    "displayValue": "2.63万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "66934.0",
                    "displayValue": "66934",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "669340.0",
                    "displayValue": "66.93万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0.00",
                    "dataFormatStr": "0.00"
                }
            ]
        ],
        "page": {
            "pageSize": 1,
            "pageNumber": 1,
            "pageCount": 5,
            "totalCount": 5
        }
    }
}

3.3 通过viewId，filterList查询拼表数据 Fx.BI.queryLwtViewDataByFilter(<String viewId>,<List filterList>)

3.3.1 函数用途

通过viewId和筛选范围进行查询拼表

3.3.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	交叉表ID	“BI_62973467376efe000172be38”
filterList	Integer	是	筛选条件	List filterList = [["filterId":"BI_62cb8af6741ac20001debf72","value1":"","value2":"","dateRangeId":6]]

参数	类型	是否必须	说明	参数示例
filterId	String	是	拼表ID	“BI_lwt_1657506871248”
value1	String	是	筛选值	“”
value2	Integer	是	筛选值	”"
dateRangeId	Integer	否	枚举值	6 （注意：枚举值见-》6、使用filterList注意事项：日期筛选case和枚举项）

3.3.3 函数举例

==========================查询筛选的拼表数据===============================
=============================================================================================
List filterList = [["filterId":"BI_62cb8af6741ac20001debf72","value1":"","value2":"","dateRangeId":6]];
def(isError,data,errorMsg) = Fx.BI.queryLwtViewDataByFilter("BI_lwt_1657506871248",filterList)
if(!isError){
  log.info("分页信息:"+data["page"])
  log.info("表头信息:"+data["displayFields"])
  log.info("数据集:"+data["dataSet"])
}else{
  log.info("查询失败:"+errorMsg)
}

3.3.4 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
displayFields	Object	表头信息
dataSet	Object	结果数据集

3.3.5 返回值示例

图表数据返回的结构统一为二维表，成对映射

{
    "code": 200,
    "message": "success",
    "i18nCode": null,
    "data": {
        "displayFields": [
            [
                {
                    "fieldId": "BI_lwt_calc_d9cad9232d464077b5eafcd13f60183f",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_228e9fbb9359411faa3f5ee2bb13649b",
                    "fieldName": "年",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_d2530cb668b64b06ae54a4232b0ccc87",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_399493e3de2c4d299c10d705f188eb49",
                    "fieldName": "季",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_f3b44d6bb3324183bf164596ea0dbd5c",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_40095e45357947b792fe855350dd84be",
                    "fieldName": "月",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_8f6ddee4bf9d49c99902f30b769801ea",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                }
            ],
            [
                {
                    "fieldId": "BI_5be1388756fc11448c4567dc",
                    "fieldName": "产品线",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "MultiSelectEnum",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "product_line",
                    "linkObjName": "ProductObj"
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                }
            ]
        ],
        "dataSet": [
            [
                {
                    "value": "产品线3",
                    "displayValue": "产品线3",
                    "dataFormatStr": ""
                },
                {
                    "value": "73976.0",
                    "displayValue": "73976",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "739760.0",
                    "displayValue": "73.98万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "19194.0",
                    "displayValue": "19194",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "191940.0",
                    "displayValue": "19.19万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0.00",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "产品线2",
                    "displayValue": "产品线2",
                    "dataFormatStr": ""
                },
                {
                    "value": "199451.0",
                    "displayValue": "199451",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "1994510.0",
                    "displayValue": "199.45万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "47691.0",
                    "displayValue": "47691",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "476910.0",
                    "displayValue": "47.69万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0.00",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "产品线1",
                    "displayValue": "产品线1",
                    "dataFormatStr": ""
                },
                {
                    "value": "269469.0",
                    "displayValue": "269469",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "6041360.0",
                    "displayValue": "604.14万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "66934.0",
                    "displayValue": "66934",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "669340.0",
                    "displayValue": "66.93万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0.00",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "557336.0",
                    "displayValue": "557336",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "5573415.0",
                    "displayValue": "557.34万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "143423.0",
                    "displayValue": "143423",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "1434230.0",
                    "displayValue": "143.42万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "18389.0",
                    "displayValue": "18389",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "183890.0",
                    "displayValue": "18.39万",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "557336.0",
                    "displayValue": "557336",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "5573415.0",
                    "displayValue": "557.34万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "143423.0",
                    "displayValue": "143423",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "1434230.0",
                    "displayValue": "143.42万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "240947.0",
                    "displayValue": "240947",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "2409470.0",
                    "displayValue": "240.95万",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "557336.0",
                    "displayValue": "557336",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "5573415.0",
                    "displayValue": "557.34万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "547561.0",
                    "displayValue": "547561",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "5475610.0",
                    "displayValue": "547.56万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "18389.0",
                    "displayValue": "18389",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "183890.0",
                    "displayValue": "18.39万",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "557336.0",
                    "displayValue": "557336",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "5573415.0",
                    "displayValue": "557.34万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "547561.0",
                    "displayValue": "547561",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "5475610.0",
                    "displayValue": "547.56万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "240947.0",
                    "displayValue": "240947",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "2409470.0",
                    "displayValue": "240.95万",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "2436277.0",
                    "displayValue": "2436277",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "24380370.0",
                    "displayValue": "2,438.04万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "143423.0",
                    "displayValue": "143423",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "1434230.0",
                    "displayValue": "143.42万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "18389.0",
                    "displayValue": "18389",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "183890.0",
                    "displayValue": "18.39万",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "2436277.0",
                    "displayValue": "2436277",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "24380370.0",
                    "displayValue": "2,438.04万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "143423.0",
                    "displayValue": "143423",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "1434230.0",
                    "displayValue": "143.42万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "240947.0",
                    "displayValue": "240947",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "2409470.0",
                    "displayValue": "240.95万",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "2436277.0",
                    "displayValue": "2436277",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "24380370.0",
                    "displayValue": "2,438.04万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "547561.0",
                    "displayValue": "547561",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "5475610.0",
                    "displayValue": "547.56万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "18389.0",
                    "displayValue": "18389",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "183890.0",
                    "displayValue": "18.39万",
                    "dataFormatStr": "0.00"
                }
            ],
            [
                {
                    "value": "--",
                    "displayValue": "--",
                    "dataFormatStr": ""
                },
                {
                    "value": "2436277.0",
                    "displayValue": "2436277",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "24380370.0",
                    "displayValue": "2,438.04万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "547561.0",
                    "displayValue": "547561",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "5475610.0",
                    "displayValue": "547.56万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "240947.0",
                    "displayValue": "240947",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "2409470.0",
                    "displayValue": "240.95万",
                    "dataFormatStr": "0.00"
                }
            ]
        ],
        "page": {
            "pageSize": 20,
            "pageNumber": 1,
            "pageCount": 1,
            "totalCount": 11
        }
    }
}

3.4 通过viewId，分页信息page，filterList查询拼表数据 Fx.BI.queryLwtViewData(<String viewId>,<Integer pageNumber>,<Integer pageSize>，<List filterList>)

3.4.1 函数用途

通过viewId和筛选条件filterList、场景defaultFilterOptionId，查询交叉表

3.4.2 参数说明

参数	类型	是否必须	说明	参数示例
viewId	String	是	交叉表ID	“BI_lwt_1657506871248”
filterList	Integer	是	筛选条件	List filterList = [["filterId":"BI_62cb8af6741ac20001debf72","value1":"","value2":"","dateRangeId":6]]
pageNumber	Integer	是	页码	1
pageSize	Integer	是	每页的条数	1

3.4.3 filterList结构说明

参数	类型	是否必须	说明	参数示例
filterId	String	是	拼表ID	“BI_62973467376efe000172be38”
value1	String	是	筛选范围	“”
value2	Integer	是	筛选范围	“”
dateRangeId	Integer	否	日期筛选需要用到的枚举值	6 （注意：枚举值见-》6、使用filterList注意事项：日期筛选case和枚举项）

3.4.4 函数举例

==========================通过分页信息page、viewId、筛选器filterList查询的拼表数据===============================
=================================================================================================================
List filterList = [["filterId":"BI_62cb8af6741ac20001debf72","value1":"","value2":"","dateRangeId":6]];
def(isError,data,errorMsg) = Fx.BI.queryLwtViewData("BI_lwt_1657506871248",1,1,filterList)
if(!isError){
  log.info("分页信息:"+data["page"])
  log.info("表头信息:"+data["displayFields"])
  log.info("数据集:"+data["dataSet"])
}else{
  log.info("查询失败:"+errorMsg)

3.4.5 返回值说明

参数	类型	说明
code	Int	函数状态码：200：成功403：没有权限500：系统异常
message	String	返回消息
page	Object	分页信息
displayFields	Object	表头信息
dataSet	Object	结果数据集

3.4.6 返回值示例

图表数据返回的结构统一为二维表，成对映射

{
    "code": 200,
    "message": "success",
    "i18nCode": null,
    "data": {
        "displayFields": [
            [
                {
                    "fieldId": "BI_lwt_calc_ddc948d7b23d4a4c9da0f4d27b79d465",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_86273a3178fe4ceab71538462ee13962",
                    "fieldName": "年",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_35fc27cbe17444d6951fc4a3f82519b6",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_8c5755a7669a41f5ba57e89afc17b459",
                    "fieldName": "季",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_208110f605e94df2af1333c12c4a89bd",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_e5a5ac5d61924ce0a81699c9668c7b1b",
                    "fieldName": "月",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_lwt_calc_be4b6adce187454ebd35d2a3289eb55c",
                    "fieldName": "",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "String",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "",
                    "linkObjName": ""
                }
            ],
            [
                {
                    "fieldId": "BI_5be1388756fc11448c4567dc",
                    "fieldName": "产品线",
                    "formatStr": "",
                    "objName": "",
                    "objectNodeName": null,
                    "fieldType": "MultiSelectEnum",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "product_line",
                    "linkObjName": "ProductObj"
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_5be3b0ff2563710001ab1b62",
                    "fieldName": "销售数量(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "quantity",
                    "linkObjName": ""
                },
                {
                    "fieldId": "BI_6178cf99ea585200014b0ef9",
                    "fieldName": "订单总金额(求和)",
                    "formatStr": "",
                    "objName": "订单产品",
                    "objectNodeName": null,
                    "fieldType": "Number",
                    "joinType": "outer",
                    "refObjName": "",
                    "dbFieldName": "subtotal",
                    "linkObjName": ""
                }
            ]
        ],
        "dataSet": [
            [
                {
                    "value": "产品线3",
                    "displayValue": "产品线3",
                    "dataFormatStr": ""
                },
                {
                    "value": "73976.0",
                    "displayValue": "73976",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "739760.0",
                    "displayValue": "73.98万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "19194.0",
                    "displayValue": "19194",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "191940.0",
                    "displayValue": "19.19万",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0",
                    "dataFormatStr": "0.00"
                },
                {
                    "value": "0.0",
                    "displayValue": "0.00",
                    "dataFormatStr": "0.00"
                }
            ]
        ],
        "page": {
            "pageSize": 1,
            "pageNumber": 1,
            "pageCount": 11,
            "totalCount": 11
        }
    }
}

2023-12-08
